Adjusting Your Shade’s Limits – SmartWave Shades

This guide covers the following shade types: Cellular Shades, Plain Fold Roman Shades, and Soft Fold / Hobbled Roman Shades.

📘 Note:
1. Each SmartWave shade from the original manufacturer comes pre-programmed. This includes a remote already paired with the shade, preset upper and lower limits, and ready-to-use operation once the remote or wireless wall switch is powered on.
2. Plain Fold Roman shades and Soft Fold/Hobbled Roman shades allow limited adjustment of the upper and lower limits. However, due to their structural design, the factory-preset limits are already optimal and rarely need further changes.

Watch the video below to learn How to Adjust Your Shade's Limits.

Adjusting the Lower Limit

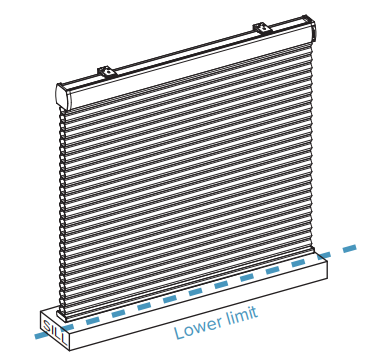

✅ If the existing lower limit is not in your desired position — for example, if the shade stops above the windowsill when fully lowered, or goes too low and interferes with the windowsill — you can follow the steps below to adjust the lower limit.

Step 1: On the remote, BRIEFLY PRESS DOWN and release.
Wait until the shade reaches its existing lower limit.

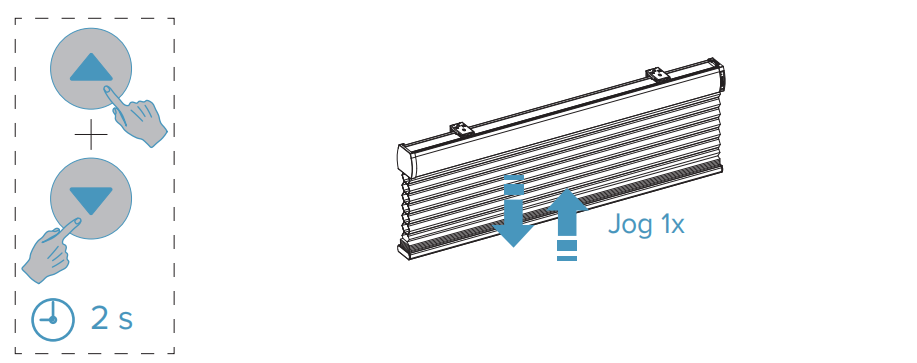

Step 2: PRESS AND HOLD the UP and DOWN buttons on the remote at the same time for 2 seconds. When the shade jogs once, release both buttons.

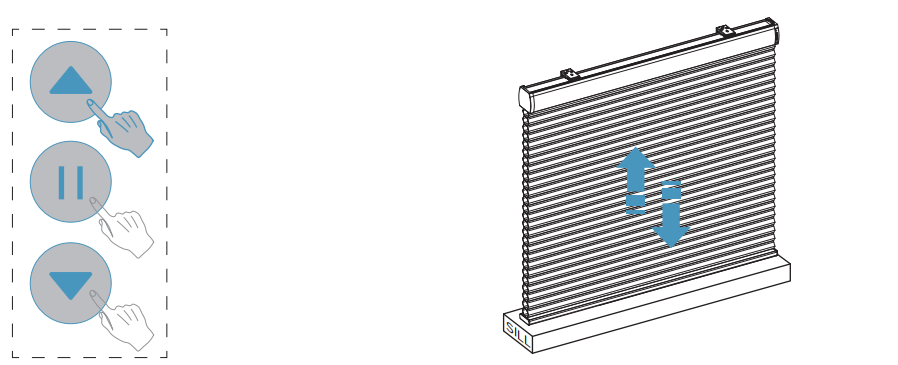

Step 3: Use the UP or DOWN buttons to move your shade to the new lower limit.

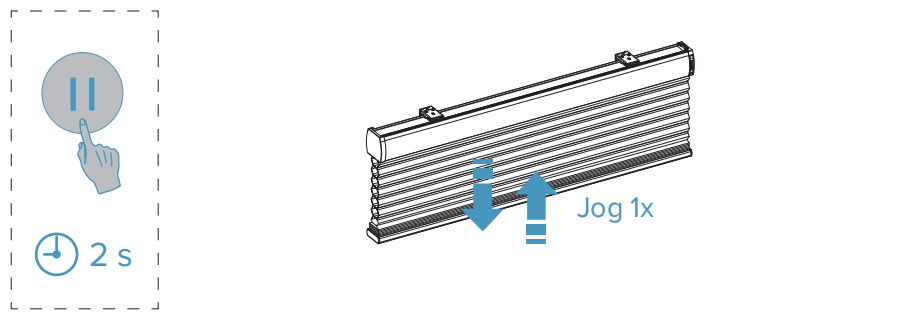

Step 4: PRESS AND HOLD the STOP button on the remote for 2 seconds.
When the shade jogs once, release the button.
At this point, the new lower limit has been successfully set.

Adjusting the Upper Limit

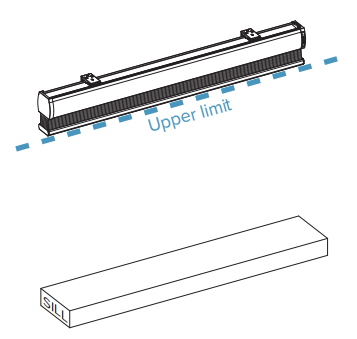

✅ If the existing upper limit is not your desired position — for example, when the shade is fully raised but still lets in too much light — you can follow the steps below to adjust the upper limit of the shade.

Step 1: On the remote, BRIEFLY PRESS UP and release. Wait until the shade reaches its existing upper limit.

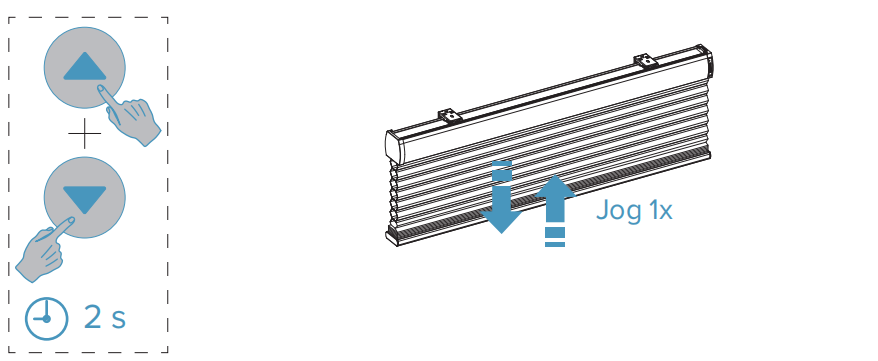

Step 2: PRESS AND HOLD the UP and DOWN buttons on the remote at the same time for 2 seconds. When the shade jogs once, release both buttons.

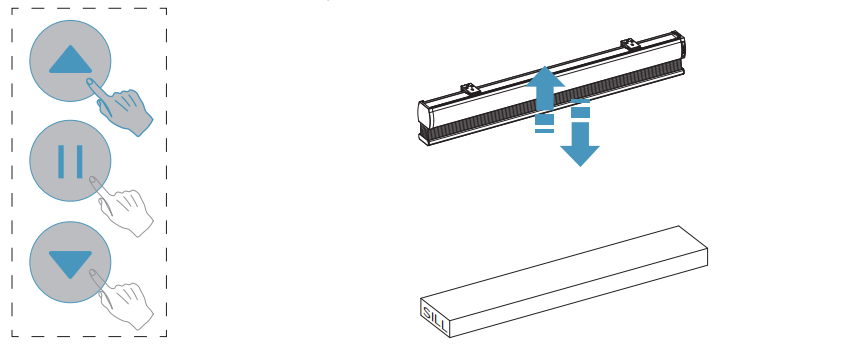

Step 3: Use the UP or DOWN buttons to move your shade to the new upper limit.

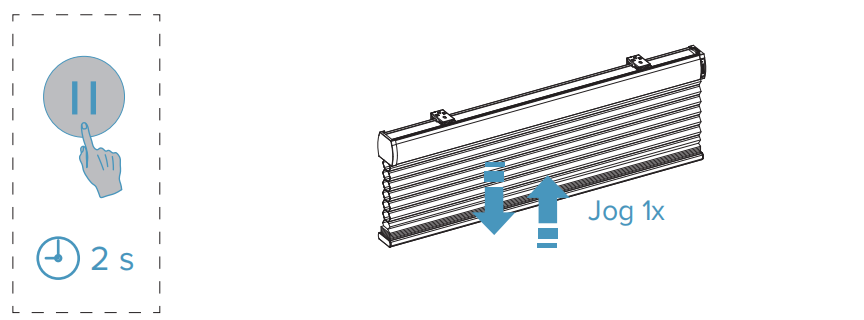

Step 4: PRESS AND HOLD the STOP button on the remote for 2 seconds.
When the shade jogs once, release the button.
At this point, the new upper limit has been successfully set.
