Reset and Re-Pair Remotes or Channels – SmartWave Shades

This guide covers the following shade types: Cellular Shades, Plain Fold Roman Shades, and Soft Fold / Hobbled Roman Shades.

📘 Note:
SmartWave shades come pre-paired with a remote or wireless wall switch from the factory. If you’re not satisfied with the original pairing setup, you can re-pair them using the methods below.

Watch the video below to learn How to Reset and Re Pair Remotes or Channels.

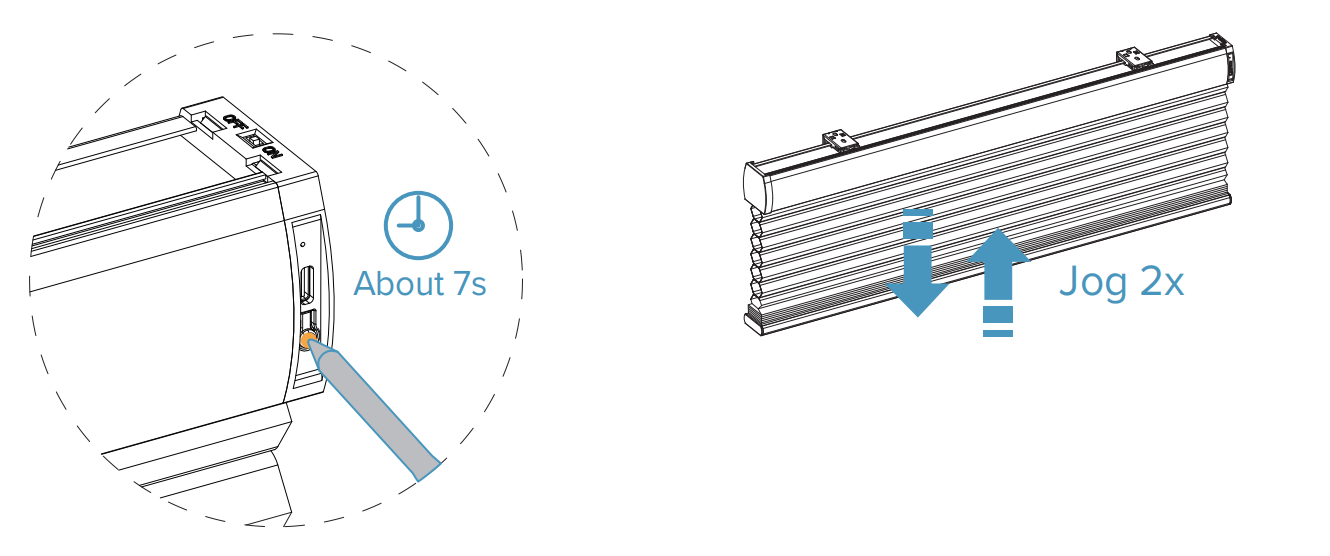

Step 1: Delete All Remotes and Channels at Once

PRESS AND HOLD the motor’s Programming button and release it when the shade jogs twice (about 7 seconds).
At this point, all remotes or channels have been successfully deleted.

⚠️ Careful Operation: When the shade jogs twice (within about 7 seconds), release the button immediately. If you continue holding it and the shade jogs a third time, all saved settings will be erased, and you will need to complete the initialization process again before the shade can operate properly.

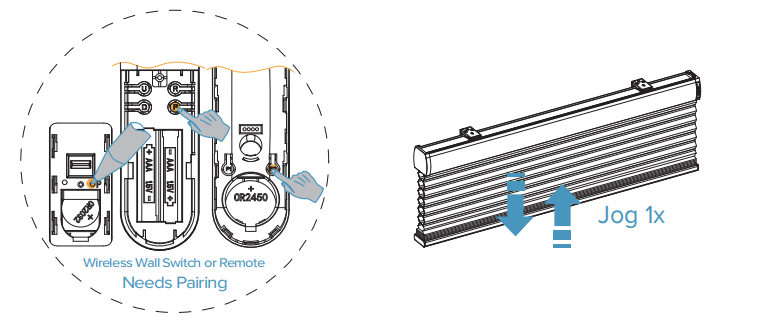

Step 2: Re-Pair a Remote or Channel

Select the remote or channel you want to add. （For example, if you’re using a 15-channel remote and want to pair the shade to channel 6, switch the remote to channel 6.）
Then BRIEFLY PRESS AND RELEASE the P button on the back of the remote. Note: Do not hold the button.
The shade will jog once. At this point, the remote or channel has been successfully paired.

If you need to pair additional remotes or wireless wall switches, refer to “Pairing a New Remote or Channel with the Shade.”
