Before you begin measuring, note any obstructions such as door and / or window hardware that protrudes, heating pipes, or inward-turning doors and windows.

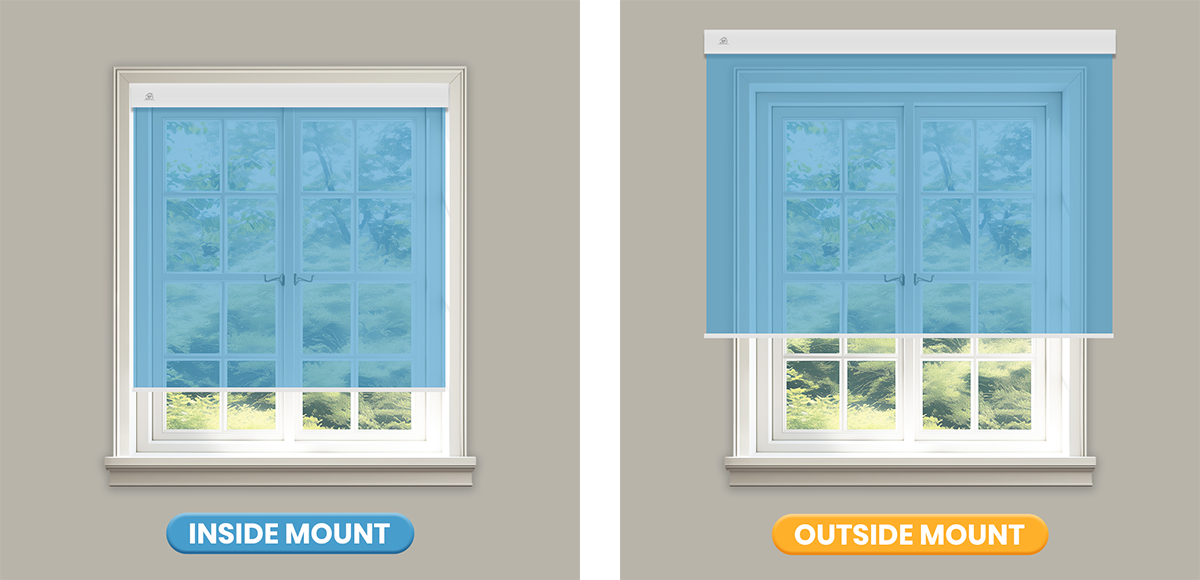

Choose a Mount Type: Inside Mount or Outside Mount
Step 1: Measure Width ①/②/③
Measure the width in 3 places. For width, use the shortest measurement to the nearest 1/8".
Order Width = The shortest of the three measurements
Do not take any deductions for clearance. The manufacturer will take a 3/16"(4.8mm) deduction off the overall width for a perfect fit.
Step 2: Measure Height ④/⑤/⑥
Measure the height in 3 places. For height, use the longest measurement to the nearest 1/8".
Roller Shades, Cellular Shades, Dual Shades:
Order Height = The longest of the three measurements
Zebra Shades, Roman Shades, Woven Wood Shades, Shangri-La Sheer Shades:
Order Height = The shortest of the three measurements
Step 3: Measure Depth ⑦
Different types of valances require different mounting depths. Click here to view the recommended mounting depths for each shade type.
Friendly reminder: If the actual mounting depth is less than the recommended value, the valance may extend beyond the window frame.

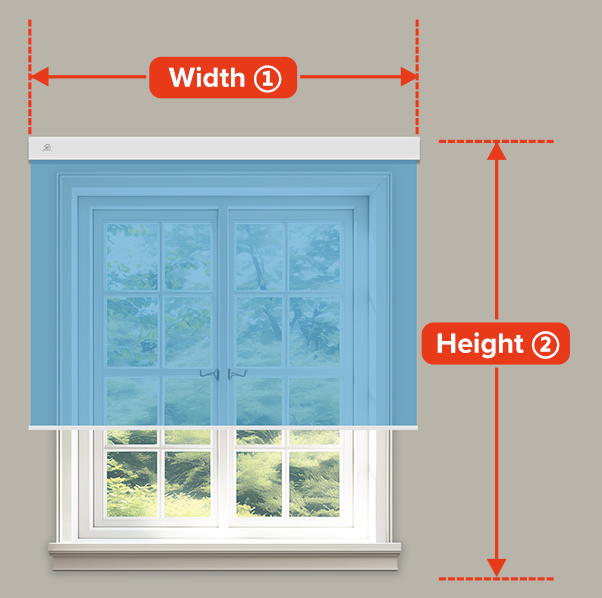

Step 1: Measure Width ①
Measure width to be covered. We recommend 1½" (3.8 cm) - 3" (7.6 cm) overlap on each side of the window (3"-6" (7.6-15.2 cm) total) for optimum light control and privacy.
Order Width = The area you wish to cover (Window width + 3"~6" (7.6-15.2 cm))
Step 2: Measure Height ②
Determine the location for the valance installation, and measure the height to be covered starting from the top of the valance installation point. (Please note: the height of your shade order includes the valance, fabric, and hem.)
We recommend adding at least 6 inches (15.2 cm) to the height of the window frame to allow space for the valance installation and to achieve optimal light control and privacy.
Order Height = The area you wish to cover (Window height + at least 6" (15.2 cm))
Outside mount shades will have no deductions taken at the factory. They will be made according to your exact measurements.
For more information on installation clearances and final dimensions, please click below to view the detailed size specifications for your selected shades type:
Detailed Installation Size Specifications
Contact Us for Measurement Assistance
If you experience any issues while measuring, please take a photo of your entire window and send it to service@smartwaveshades.com. Our team of experts will provide you with a tailored measurement plan and guide you through the process. Make sure the photo clearly captures the whole window so we can assist you effectively.
