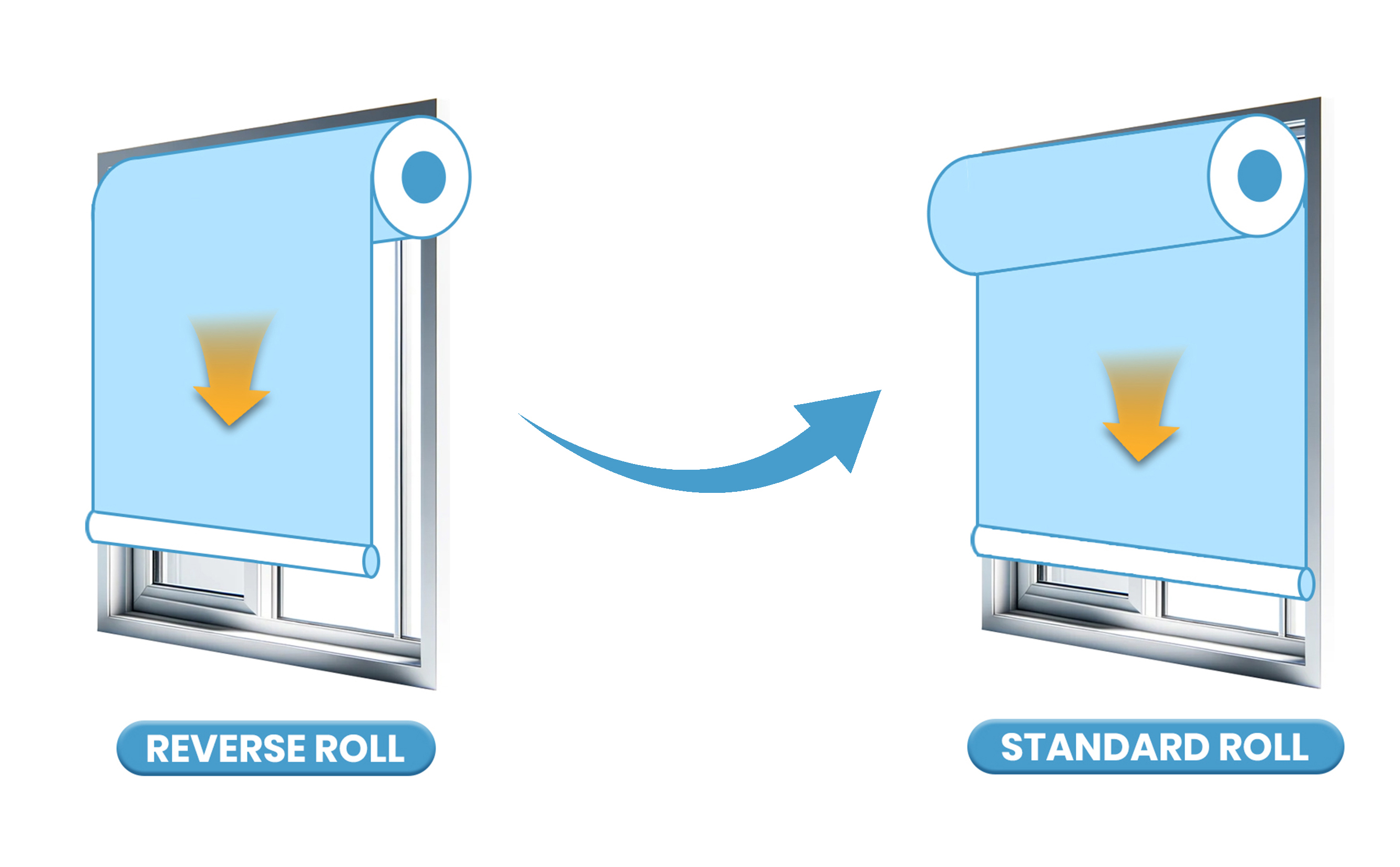

How to change the roll type from "Reverse Roll" to "Standard Roll"

Watch the video below to learn how to change the roll type from "Reverse Roll" to "Standard Roll".

1. Reset your motor

Press and hold the motor's "S" key for 12 seconds, during which the shades trembles up and down three times, the motor indicator light turns into a constant orange, indicating that the factory settings have been restored.

2. Pairing

• Press and hold the motor 'S' key for 2 seconds, the shades will tremble up and down once, and the indicator light turns orange and flashes.
• Short press the remote control setting key 'P', the shades will tremble up and down once, the indicator light turns green and flashes 5 times, indicating successful pairing.

3. Change the roll type

Press and hold the "DOWN" button on the remote control to move the shades down until the roll type changes to "Standard Roll."

Please note, when the roll type changes to "Standard Roll," continuing to press the "DOWN" button will move the shades up.

4. Change rotation direction

Press the 'UP' or 'DOWN' on the remote control to confirm the required rotation direction of the motor, then press the 'STOP' button on the remote control for 2 seconds, the shades will tremble up and down once, the indicator light turns green and flashes 5 times, indicating successful motor rotation direction switch.

5. Limit travel setting

• Step1: Upper limit travel setting

  Press the 'UP' or 'DOWN' button on the remote control to move the shades to the desired upper limit travel position, then press both the 'STOP' and 'DOWN' buttons on the remote control simultaneously for 2 seconds. The shades will automatically move downward, and you can press the 'STOP' button at any time to stop it.

• Step2: Lower limit travel setting

  Press the 'DOWN' or 'UP' button on the remote control to move the shades to the desired lower limit travel position, then press both the 'UP' and 'STOP' buttons on the remote control simultaneously for 2 seconds. The shades will automatically move upward, and you can press the 'STOP' button at any time to stop it.

• Step3: Confirm and store limit travel

  Press the 'STOP' button on the remote control for 2 seconds, the shades trembles up and down once, the motor indicator light turns green and flashes 5 times, and the continuously flashing orange light goes out, thus completing the limit travel setting.
