Enable / Disable Light Adjustment (Default: Disable) – SmartWave Shades

This guide covers the following shade types: Zebra Shades and Shangri-La Shades.

✅ Enabling the light adjustment function on Zebra Shades and Shangri-La Shades allows for precise control of light levels.

📘 Note:
If you are using the RE606 remote, you can directly adjust the light by pressing the “Light Adjustment Up” and “Light Adjustment Down” buttons.

Watch the video below to learn How to Enable or Disable Light Adjustment.

💡 Tip: If your shades are powered by a rechargeable Li-Ion battery, disconnect all charging plugs from the shades, including the solar panel plug, before making any settings to ensure the motor indicator light works correctly.

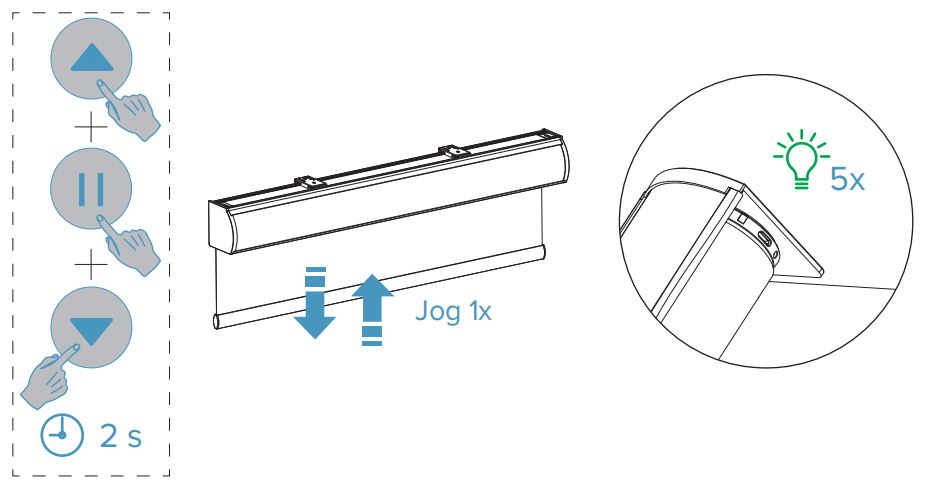

PRESS AND HOLD the UP , STOP , and DOWN buttons at the same time for 2 seconds.
When the shade jogs once, release all three buttons.
The indicator light will turn green and flash 5 times, indicating the light adjustment function is enabled. Repeat the same steps to disable the function.

How to Use

When the light adjustment function is enabled, PRESS AND HOLD the UP or DOWN button on the remote for more than 2 seconds.The motor will run slowly and continuously to adjust the slats (for example, on Zebra Shades or Shangri-La Shades).
