Remote Control User Manual

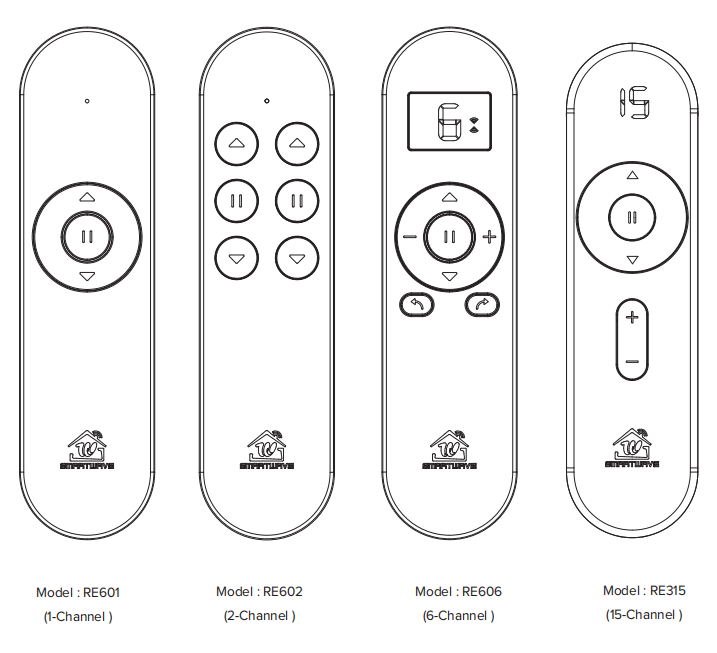

1. Model

2. Technical parameters

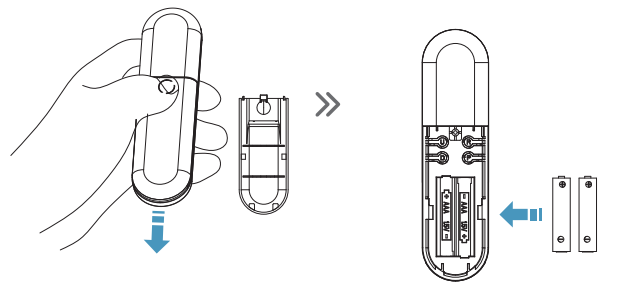

3. Install batteries into the remote control (For RE601 RE602 RE606)

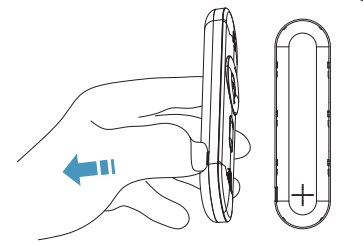

• Press the indicated area on the back cover with your finger and slide in the direction of the arrow to unlock and open it.
• After opening the back cover, please insert the two provided batteries into the remote control following the positive and negative polarity indications.

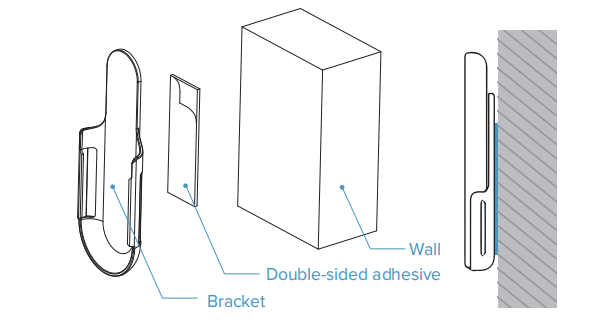

4. Installation (For RE601 RE602 RE606)

Remove the protective film from one side of the double-sided tape, press firmly after sticking, then peel off the protective film on the other side, and press down firmly again after sticking.

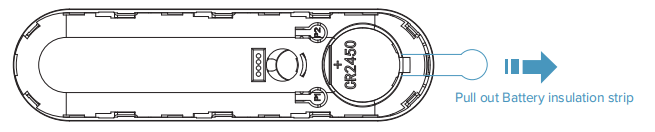

5. Remove the battery insulation strip (For RE315)

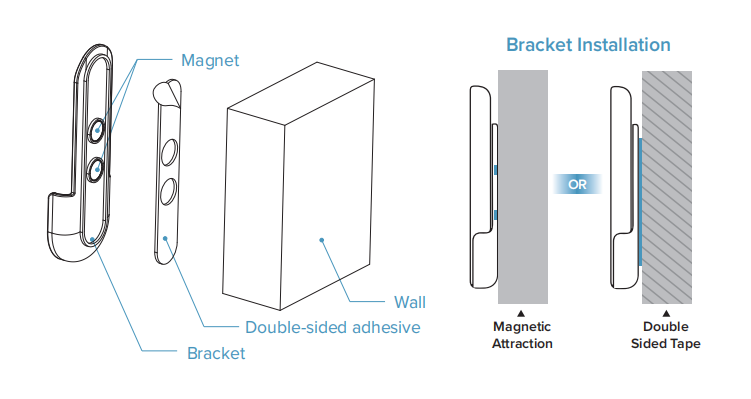

6. Installation (For RE315)

• Installation Method 1: Directly attach to steel materials by magnetic attraction.
• Installation Method 2: Rely on adhesive bonding.
  Remove the protective film from one side of the double-sided tape, press firmly after sticking, then peel off the protective film on the other side, and press down firmly again after sticking.

7. Buttons and functions

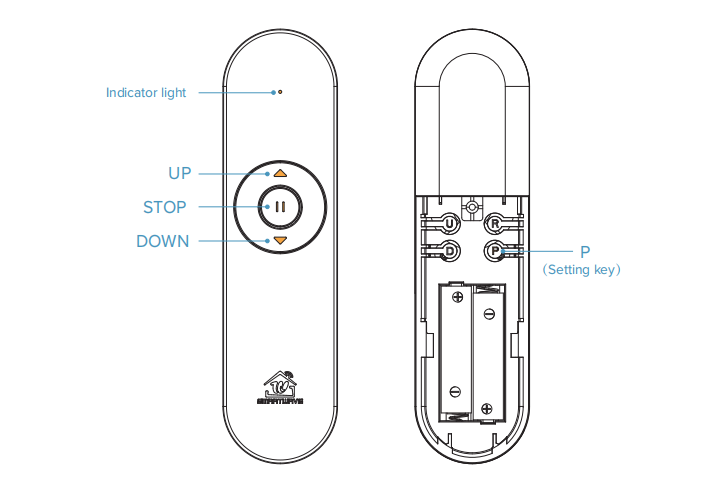

• RE601

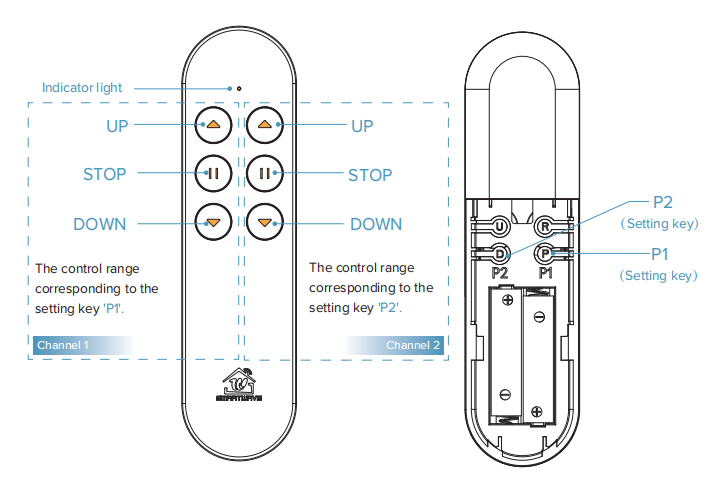

• RE602

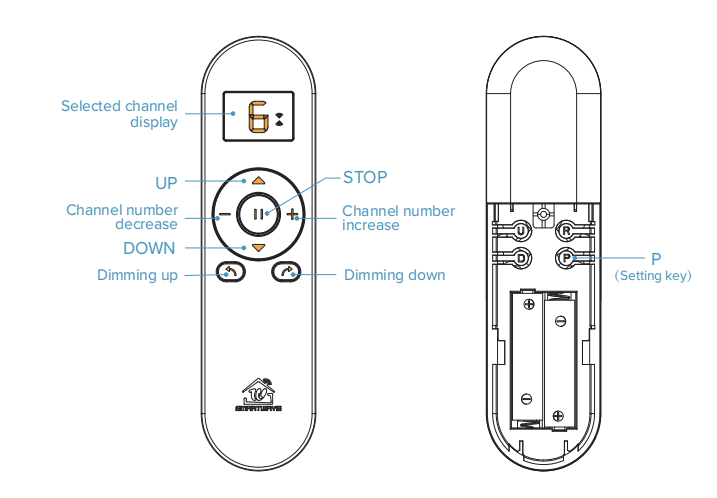

• RE606

1. Each press of the dimming button moves the shades up or down one step for dimming action. Shades that can be dimmed, such as zebra shades, Shangri-La shades, etc., can be very conveniently adjusted for light.
2. The number displayed on the screen is the selected channel. Each channel represents a transmitter.
3. It is possible to lock channels (for example, if the remote control only needs 4 channels, then lock the fourth channel, the remote control will only be able to use channels 0 to 4). The operation is as follows: Switch the screen number to the fourth channel, press both the "+" and "-" buttons at the same time, the number on the screen flashes 3 times, then release to complete the setting. Repeat this operation to cancel the channel lock function.
4. Channel 0 is for group control of all paired motors.

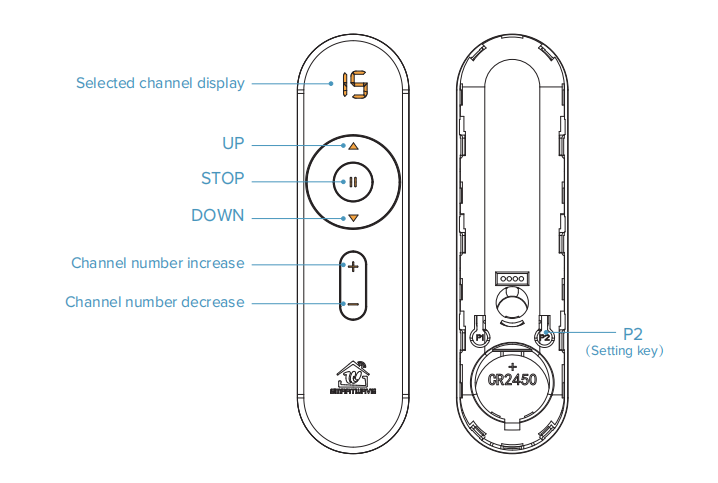

• RE315

1. The number displayed on the screen is the selected channel. Each channel represents a transmitter.
2. It is possible to lock channels (for example, if the remote control only needs 4 channels, then lock the fourth channel, the remote control will only be able to use channels 0 to 4). The operation is as follows: Switch the screen number to the fourth channel, press both the "+" and "-" buttons at the same time, the number on the screen flashes 3 times, then release to complete the setting. Repeat this operation to cancel the channel lock function.
3. Channel 0 is for group control of all paired motors.
