Wireless Wall Switch User Manual

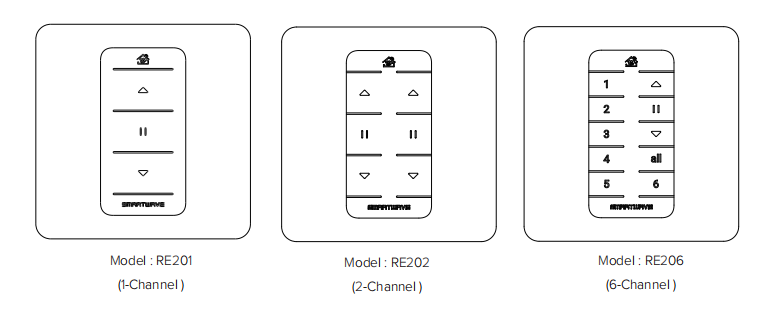

1. Model

2. Technical parameters

3. Remove the battery insulation strip

•  Before first use, please remove the insulation strip as shown in the diagram below

4. Installation

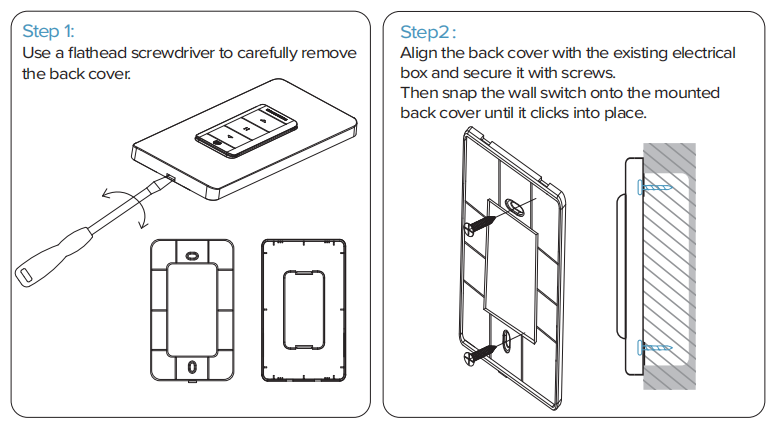

• Installation Method 1: Use screws to install onto the wall.

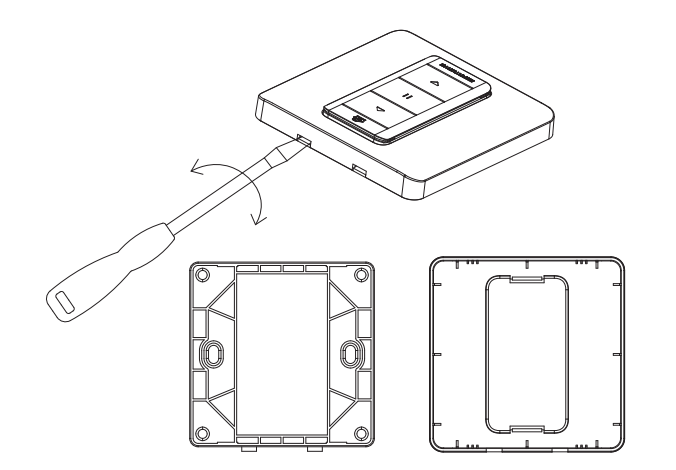

  Step 1: Utilize a flathead screwdriver to carefully open the back cover.

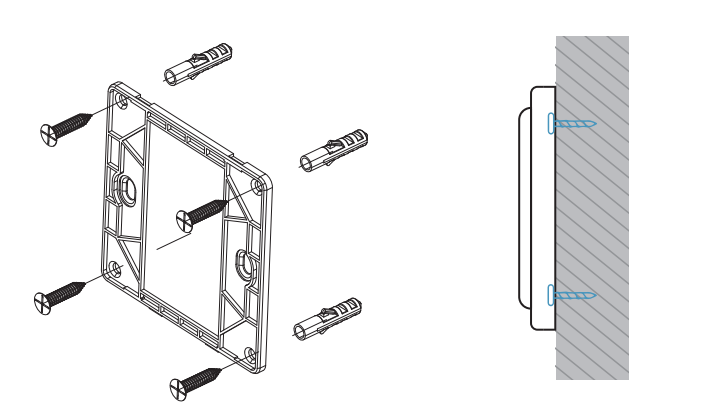

            Step2：Mount it on the wall

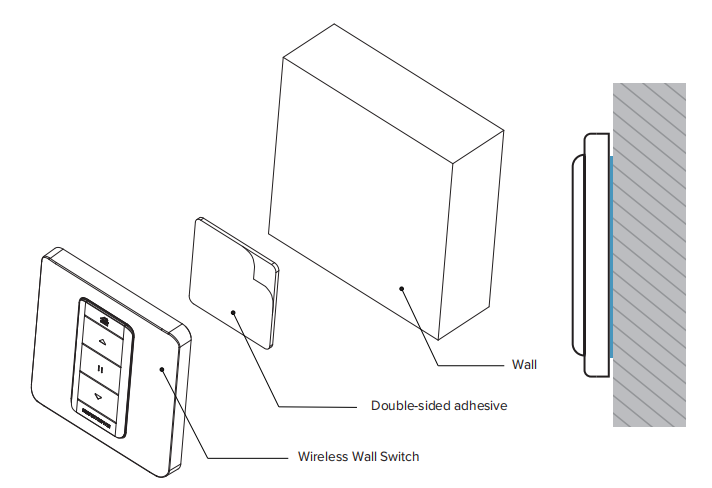

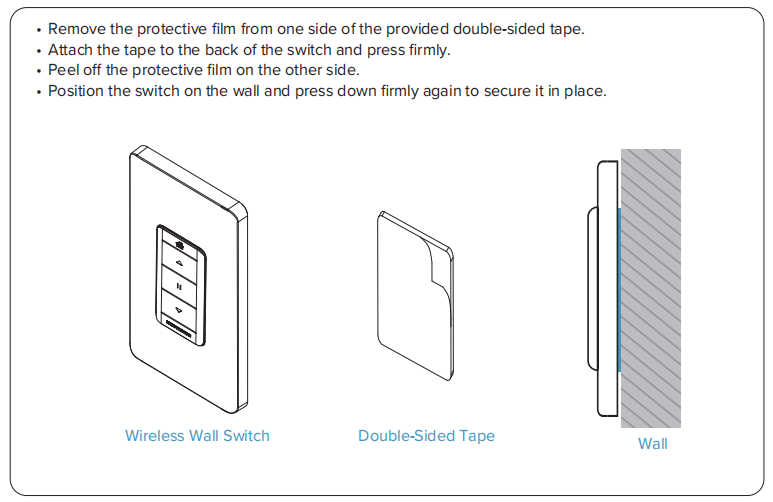

• Installation Method 2:  Use the provided double-sided adhesive to stick onto the wall.
  Remove the protective film from one side of the double-sided tape, press firmly after sticking, then peel off the protective film on the other side, and press down firmly again after sticking.

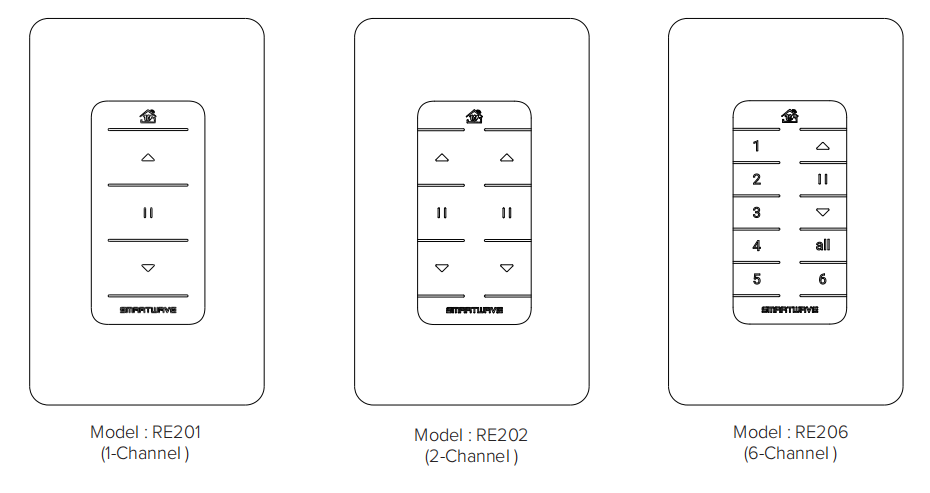

7. Buttons and functions

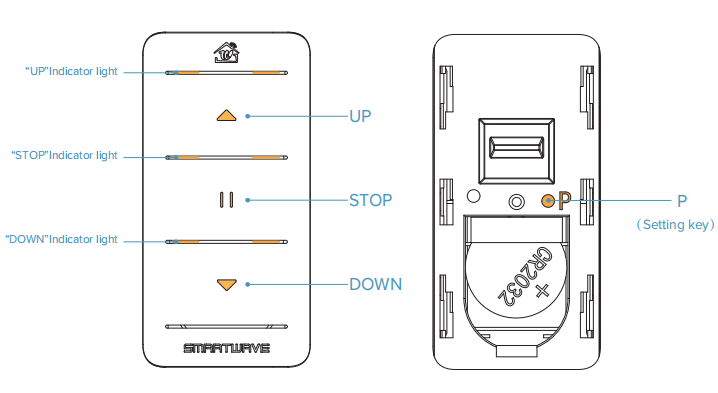

• RE201

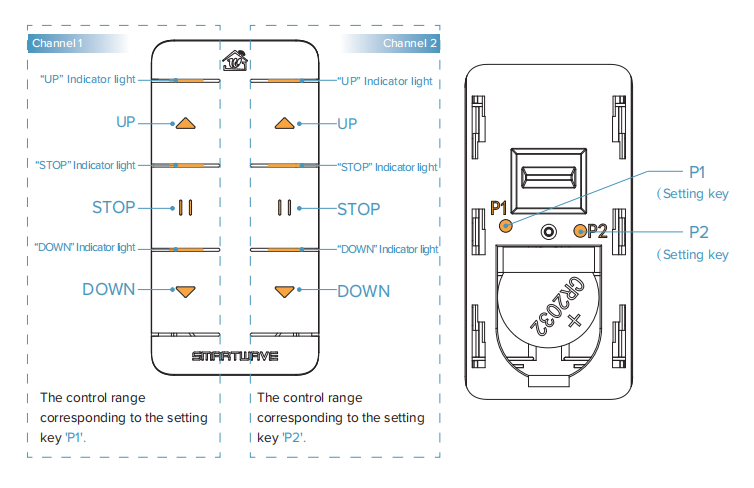

• RE202

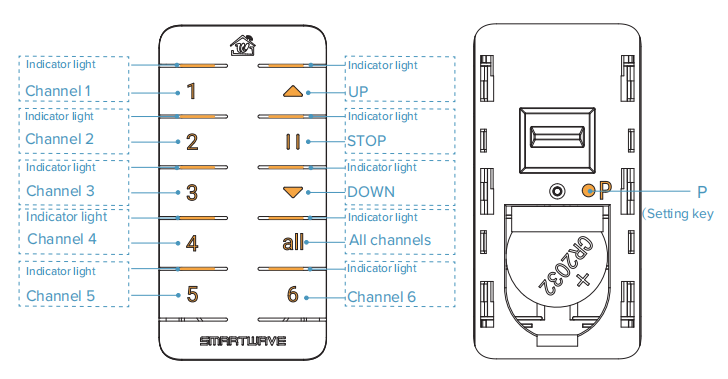

• RE206

Operating Instructions

1. Each number key corresponds to a transmission channel.
2. Selecting a channel: Press the number key, and the corresponding indicator light turns on; press the same number key again to cancel the selection of that channel, and the indicator light turns off; if there is no operation for a few seconds, the indicator light will automatically turn off.
3. You can press multiple number keys to select several channels, or choose "all" to select all channels, then perform raising, lowering, or stopping the shades from moving.
4. Function settings can only be made when a single channel is selected. (For example: pairing, fine-tuning the upper limit, etc.)
5. Pressing a function key (for example: the UP button) locks the channel indicator light and the pressed function indicator light to flash simultaneously. Release the button, and all indicator lights turn off.
