Charging Indicator Light Guide for Rechargeable Li-Ion Battery Motors

For Roller, Zebra, Cordless Roman, Shangri-La, Dual, Outdoor, and Woven Wood Shades

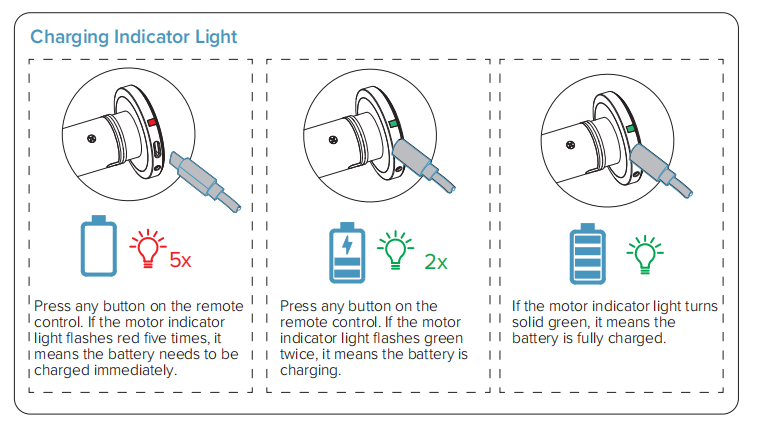

Understanding the Charging Indicator Light:

• Low Battery Warning:
  Press any button on the remote control.
  If the motor indicator light flashes red five times, it means the battery is low and needs to be charged immediately.

• Charging in Progress:
  When the charger is connected, the motor indicator light flashes green twice to indicate that charging has started.
  You can also press any button on the remote control — if the light flashes green twice, the battery is charging.

• Fully Charged:
  When the motor indicator light turns solid green, the battery is fully charged and ready for use.

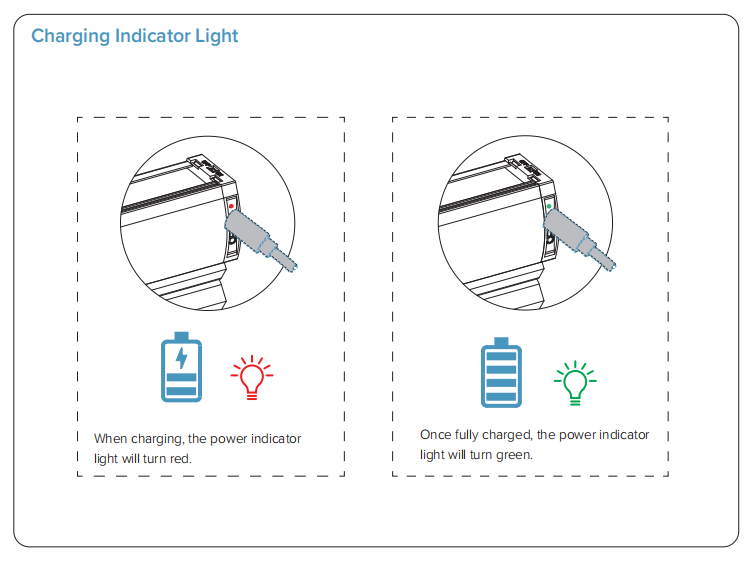

For Cellular, Plain Fold Roman, and Soft Fold / Hobbled Roman Shades

Understanding the Charging Indicator Light:

• Charging in Progress:
  When the charger is connected, the power indicator light turns red, indicating the battery is charging.

• Fully Charged:
  Once the power indicator light turns green, the battery is fully charged and can be safely unplugged.
