Deleting a Remote or Channel from the Shade (Gen 2 Motor) – SmartWave Shades

Applicable Shade Types

Roller Shades · Zebra Shades · Cordless Roman Shades · Woven Wood Shades · Shangri-La Shades · Outdoor Shades · Dual Shades

Motor Version

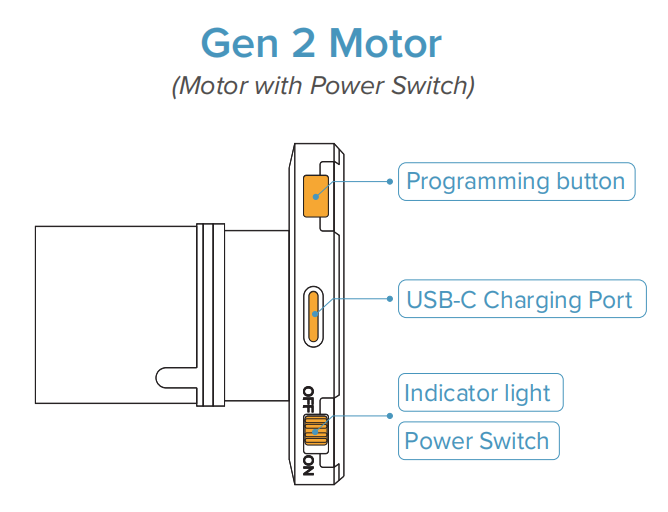

This guide is for shades equipped with a Gen 2 Motor.

📘 Note:
1. Each SmartWave shade from the original manufacturer comes pre-programmed. This includes a remote already paired with the shade, preset upper and lower limits, and ready-to-use operation once the remote or wireless wall switch is powered on.
2. If the remote or channel you want to delete is the only one paired with the shade, it cannot be deleted using this method. To delete it, please refer to “Reset and Re-Pair Remotes or Channels.”

Watch the video below to learn How to Delete a Remote or Channel from the Shade.

💡 Tip: If your shades are powered by a rechargeable Li-Ion battery, disconnect all charging plugs from the shades, including the solar panel plug, before making any settings to ensure the motor indicator light works correctly.

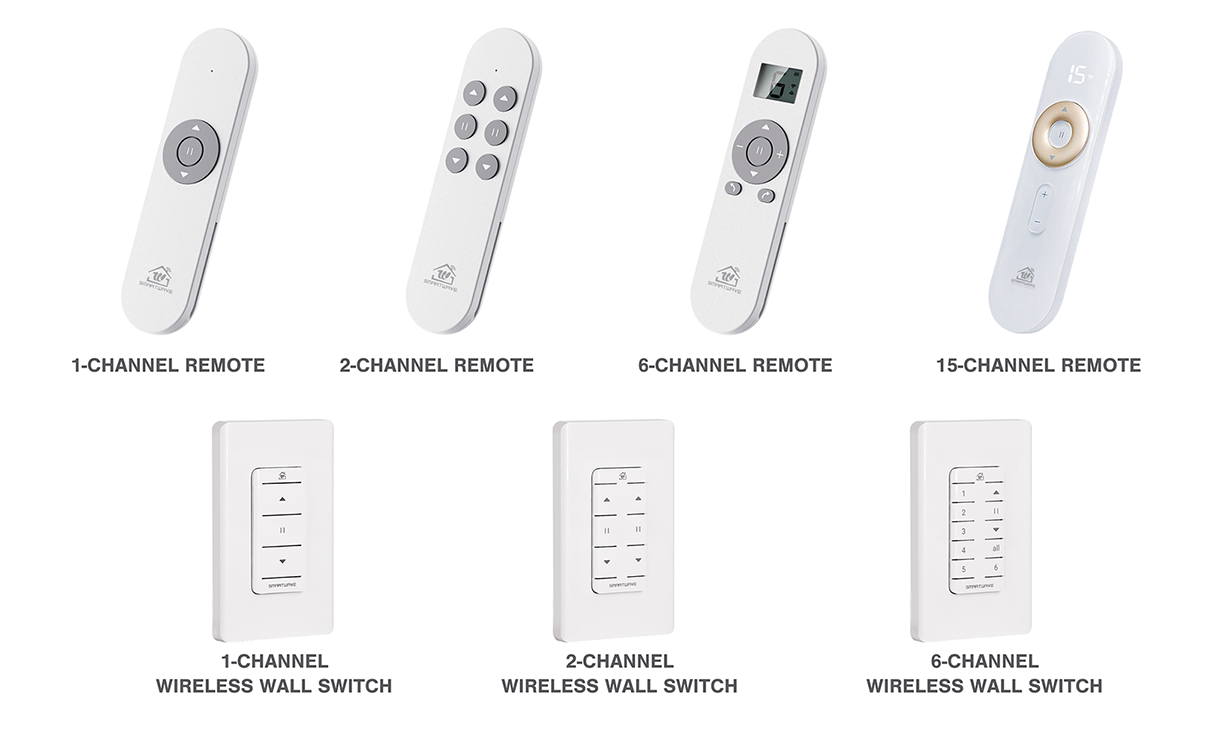

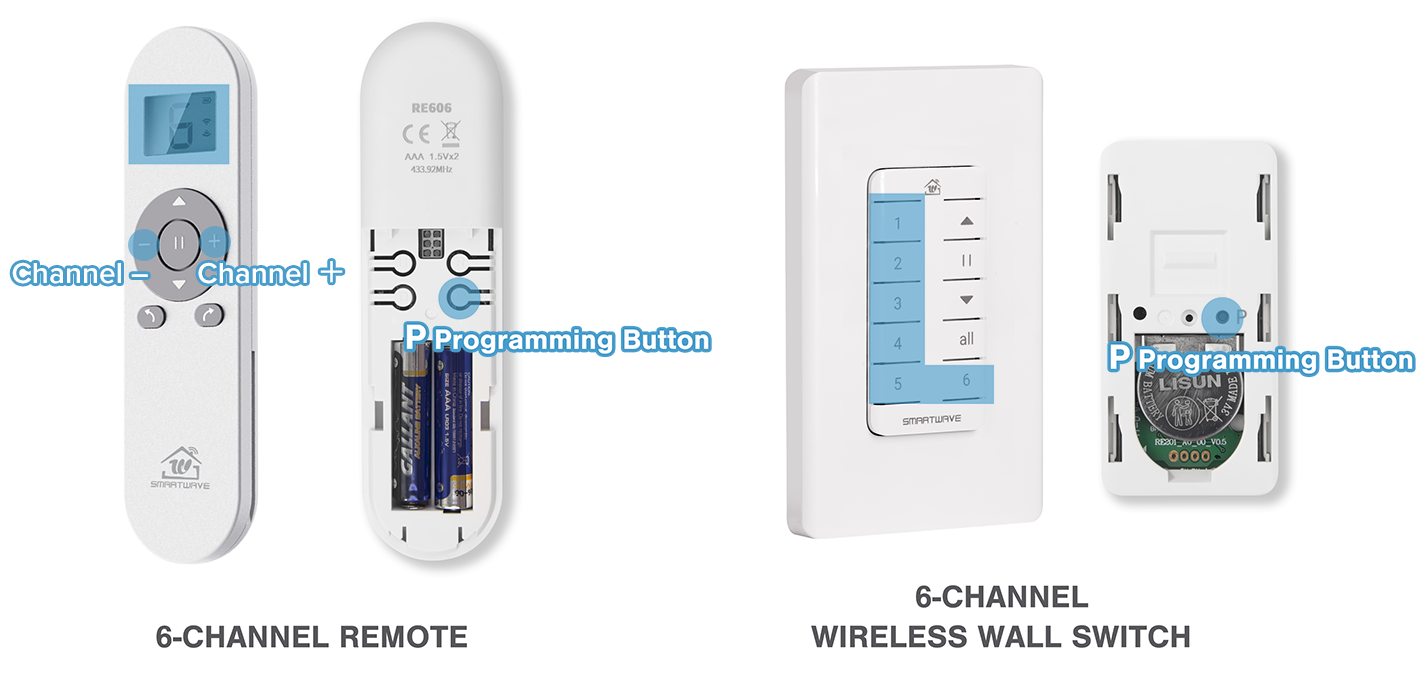

⚙️ Before deleting: Please confirm the model of your remote control or wireless wall switch.

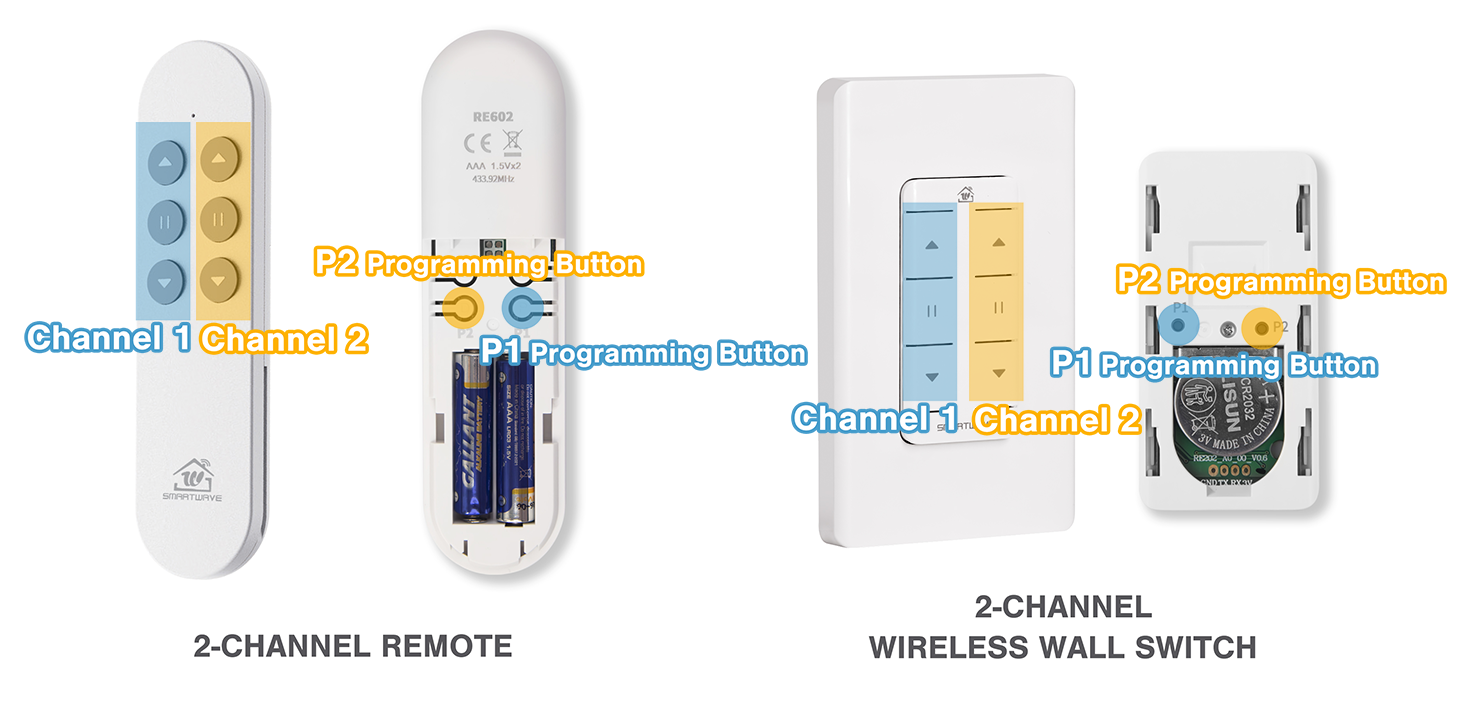

Please note that if your remote control or wireless wall switch is a 2-channel device,
Channel 1 corresponds to the programming button labeled “P1.”
Channel 2 corresponds to the programming button labeled “P2.”

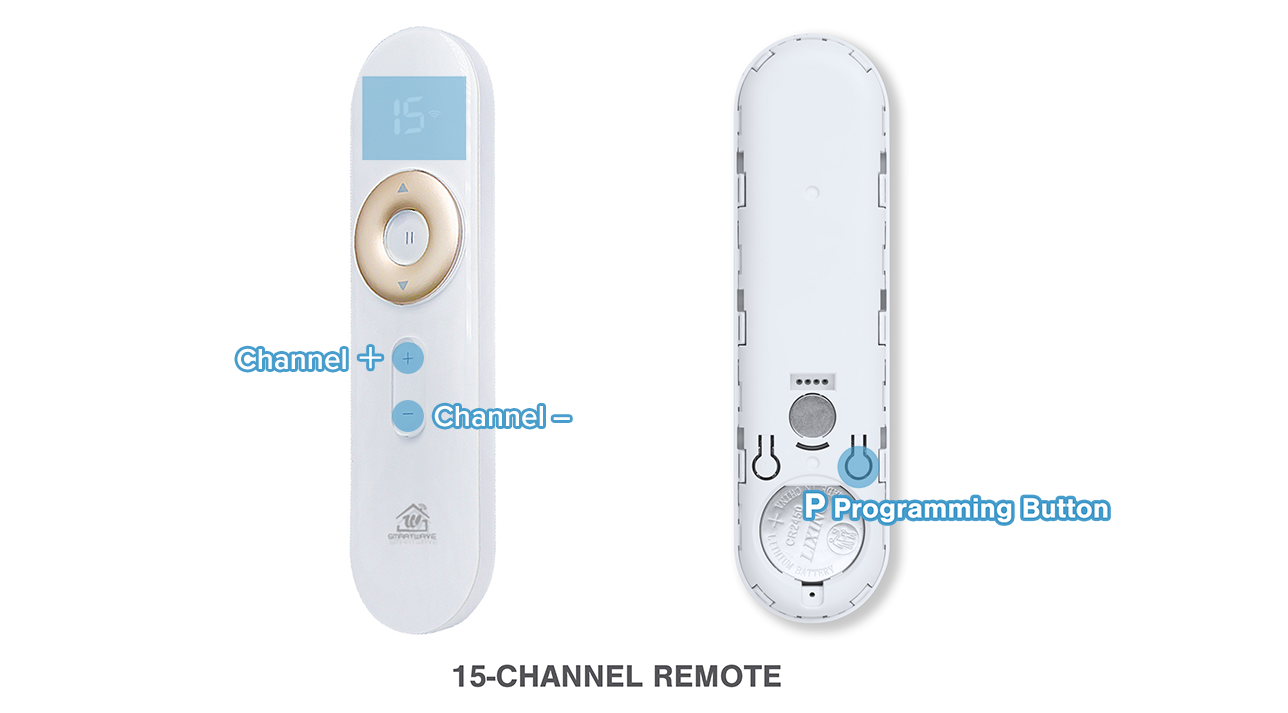

If it is a 6-channel or 15-channel device, select the desired channel first. The P button will then function as the programming button for the selected channel.

Method 1: Using the Program Button on the Motor

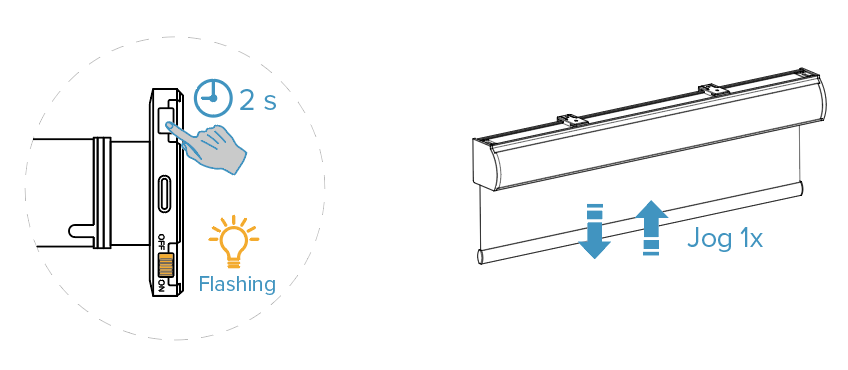

Step 1: PRESS AND HOLD the motor’s Programming button for about 2 seconds.
When the shade jogs once, release the button.
The indicator light will turn orange and begin flashing continuously.

Step 2: Select the remote or channel you want to delete.

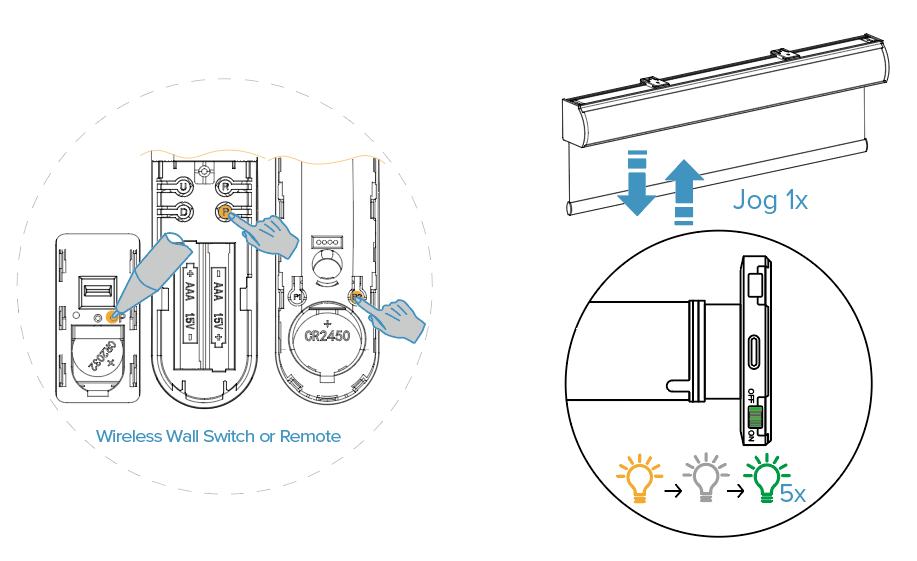

BRIEFLY PRESS AND RELEASE the P button on the back of the remote. Note: Do not hold the button.
(For wireless wall switches, use a paperclip or similar item.)
The shade will jog once. The orange flashing indicator light will turn off, then flash green 5 times, confirming successful deletion.

Method 2: Using the P Button on the Remote to Be Deleted

Step 1: Select the remote or channel you want to delete.

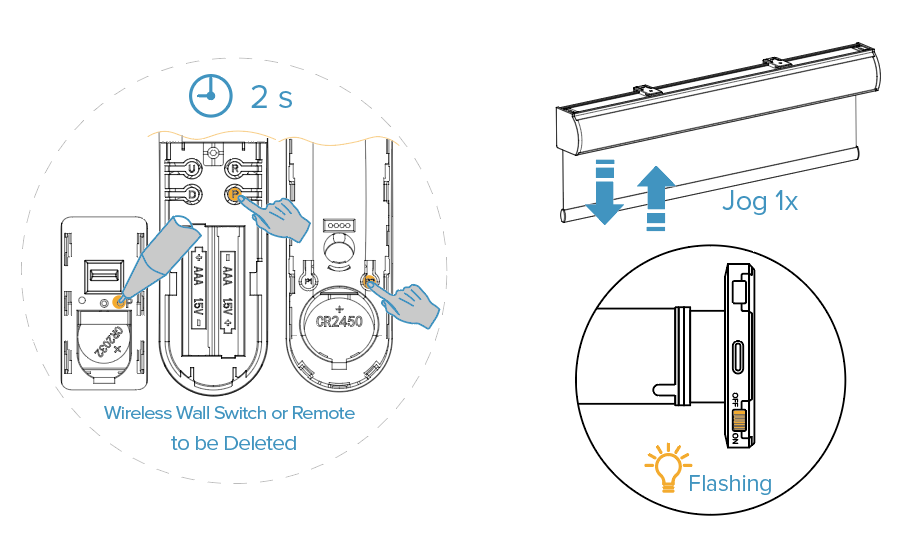

PRESS AND HOLD the P button on the back of the remote for about 2 seconds.
(For wireless wall switches, use a paperclip or similar item.)
When the shade jogs once, release the button.
The indicator light will turn orange and begin flashing continuously.

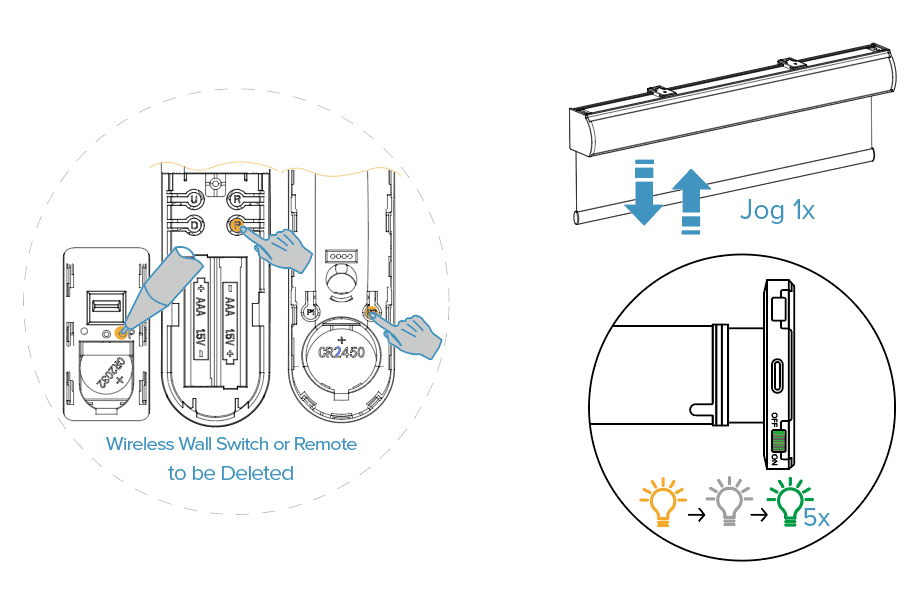

Step 2: Then, on the same remote, BRIEFLY PRESS AND RELEASE the P button again. Note: Do not hold the button.
The shade will jog once.
The orange flashing indicator light will turn off, then flash green 5 times, confirming successful deletion.
