Adjusting Your Drapery ’s Limits – SmartWave Shades

This guide covers the following shade types: Drapery.

📘 Note:
Each SmartWave drapery from the original manufacturer comes pre-programmed. This includes a remote already paired with the drapery, preset open and close limits, and ready-to-use operation once the remote or wireless wall switch is powered on.

Watch the video below to learn How to Adjust Your Drapery's Limits.

Adjusting the Open Limit

✅ If the existing open limit is not your desired position, you can follow the steps below to adjust the open limit of the drapery.

Step 1: On the remote, BRIEFLY PRESS DOWN and release.
Wait until the drapery reaches its existing open limit.

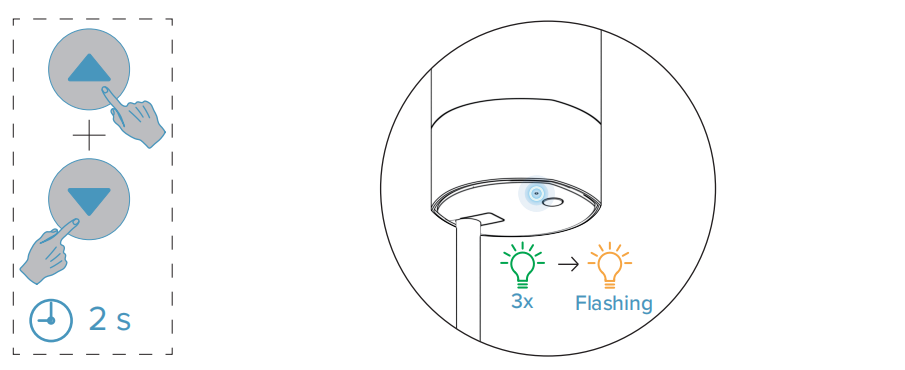

Step 2: PRESS AND HOLD the UP and DOWN buttons on the remote at the same time for 2 seconds. The indicator light will flash green three times, then switch to orange and continue flashing.

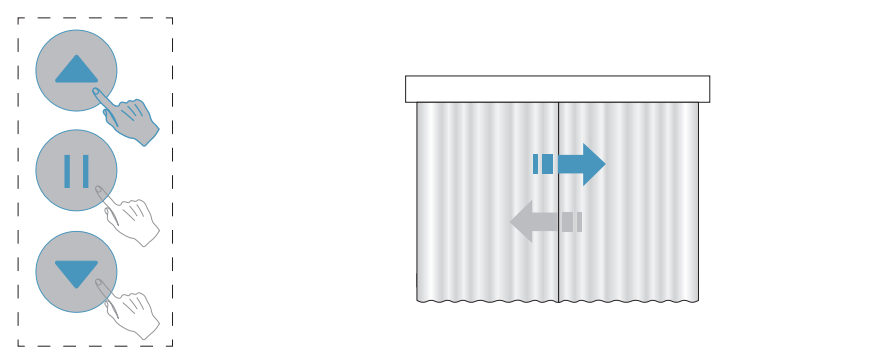

Step 3: Use the UP or DOWN buttons to move your drapery to the new open limit.

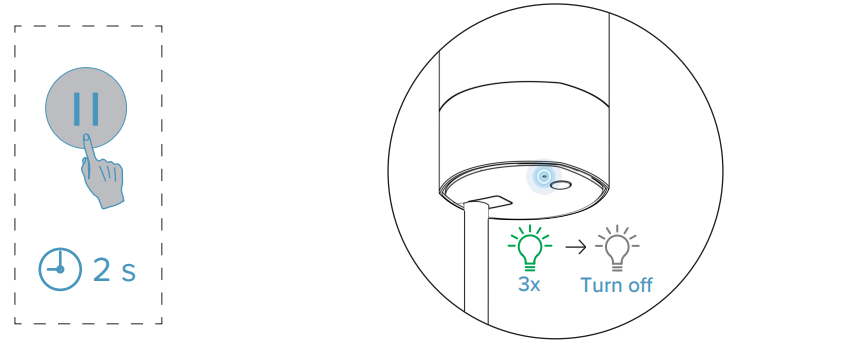

Step 4: PRESS AND HOLD the STOP button on the remote for 2 seconds.
The indicator light will flash green three times and then turn off. This means the new open limit has been set.

Adjusting the Close Limit

✅ If the existing close limit is not your desired position, you can follow the steps below to adjust the close limit of the drapery.

Step 1: On the remote, BRIEFLY PRESS UP and release.
Wait until the drapery reaches its existing close limit.

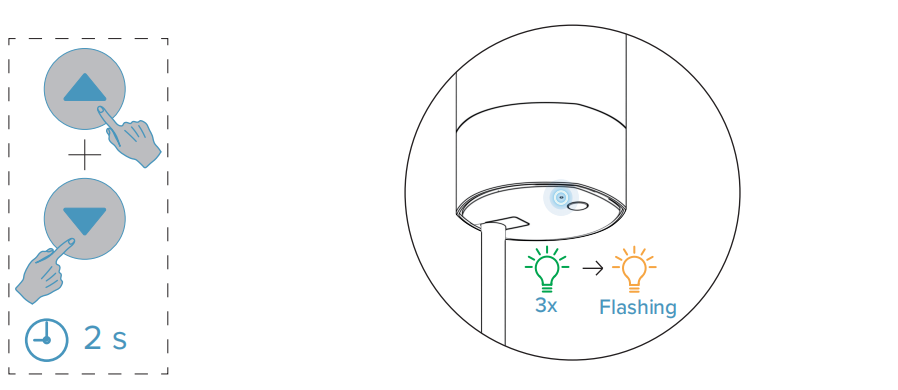

Step 2: PRESS AND HOLD the UP and DOWN buttons on the remote at the same time for 2 seconds. The indicator light will flash green three times, then switch to orange and continue flashing.

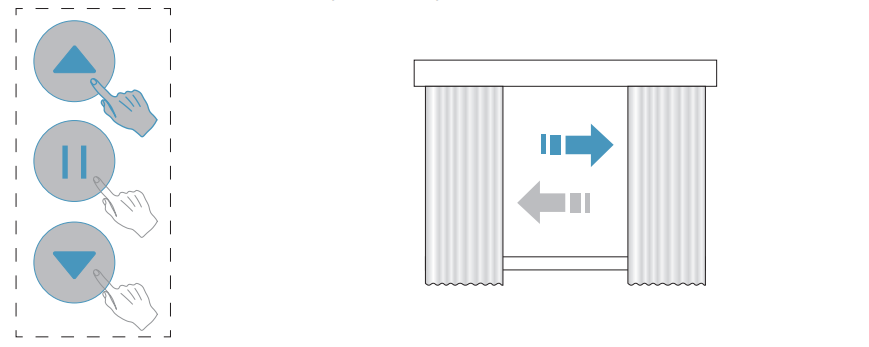

Step 3: Use the UP or DOWN buttons to move your drapery to the new close limit.

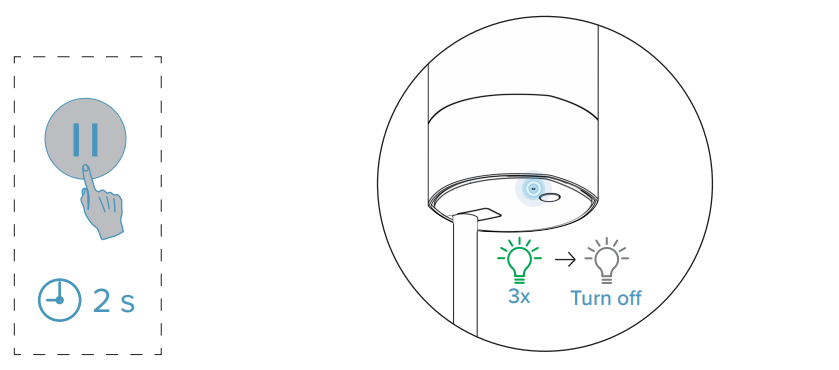

Step 4: PRESS AND HOLD the STOP button on the remote for 2 seconds.
The indicator light will flash green three times and then turn off. This means the new close limit has been set.
