Switching Hand-Pull Control Modes for Drapery

This guide covers the following shade types: Drapery.

• Hand-Pull Auto Open/Close Mode: Pulling the fabric toward open will automatically move the drapery to its fully open limit; pulling toward close will automatically move it to its fully closed limit.
• Hand-Pull Stop Mode: Pulling the fabric will stop the drapery at any desired position.

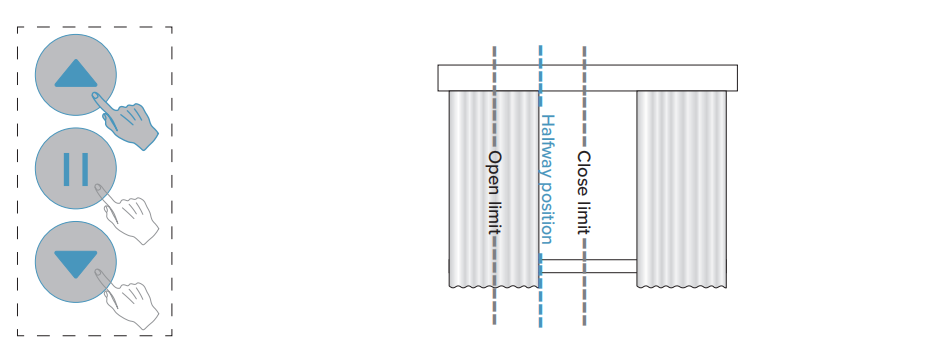

Step 1, Use the remote to move the drapery to a position roughly halfway between its open and close limits.

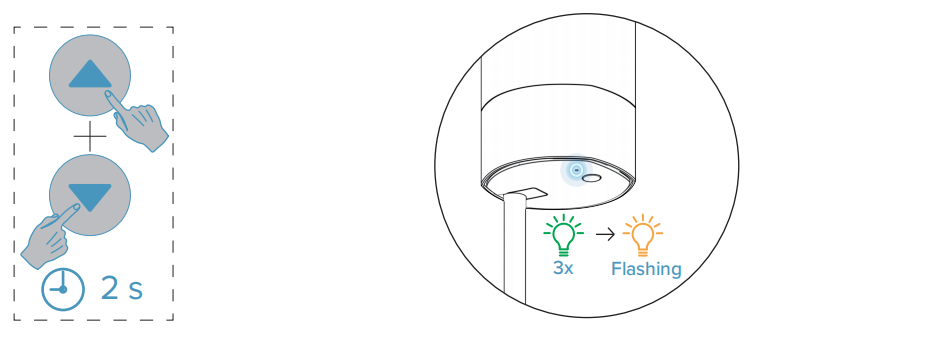

Step 2, PRESS AND HOLD the UP and DOWN buttons on the remote at the same time for 2 seconds.
The indicator light will flash green three times, then switch to orange and continue flashing.

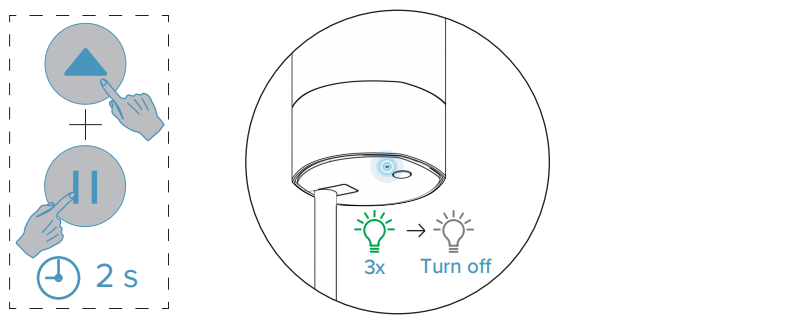

Step 3, PRESS AND HOLD the UP and STOP buttons on the remote at the same time for 2 seconds.
The indicator light will flash green three times and then turn off. The drapery is now switched to Hand-Pull Stop Mode.



Repeat the same steps to switch back to Hand-Pull Auto Open/Close Mode.
