This guide covers the following shade types: Drapery.

Watch the video below to learn How to Delete a Remote or Channel from the Drapery.

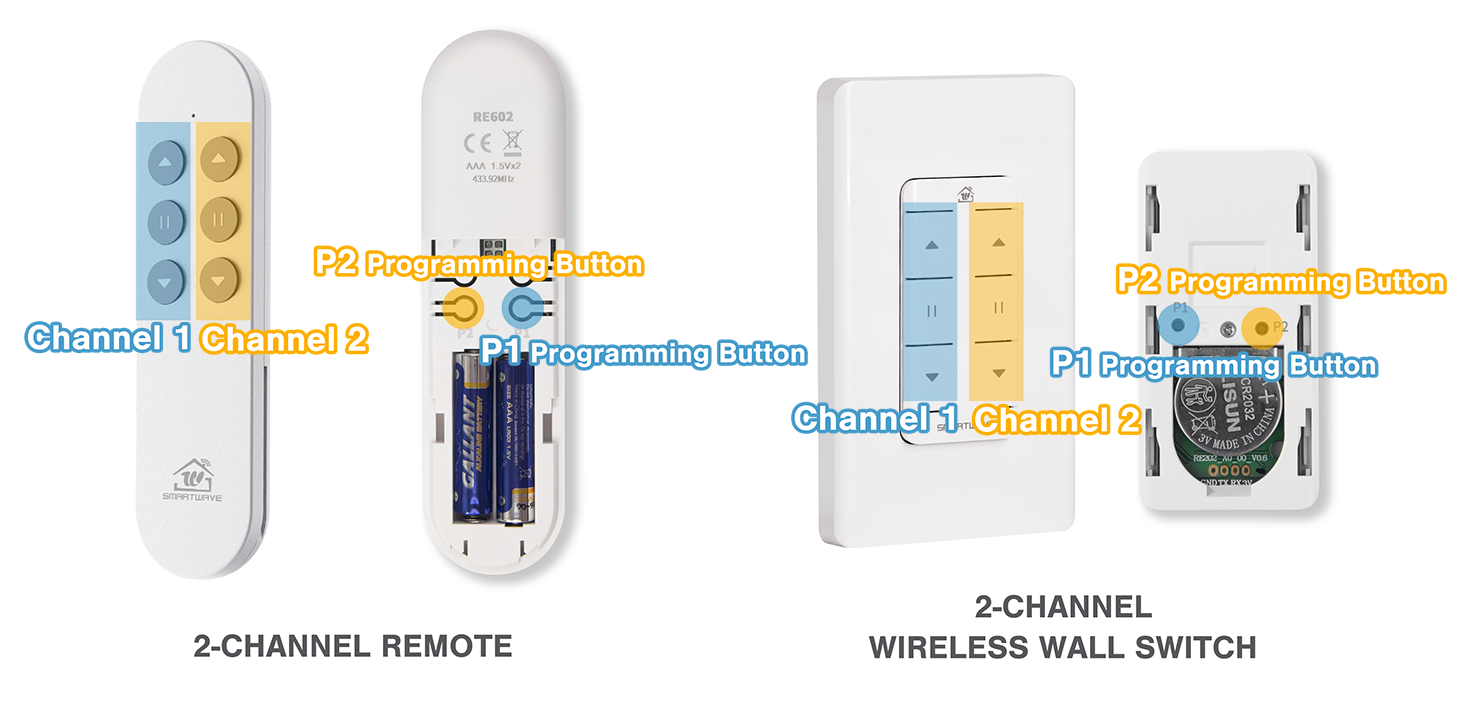

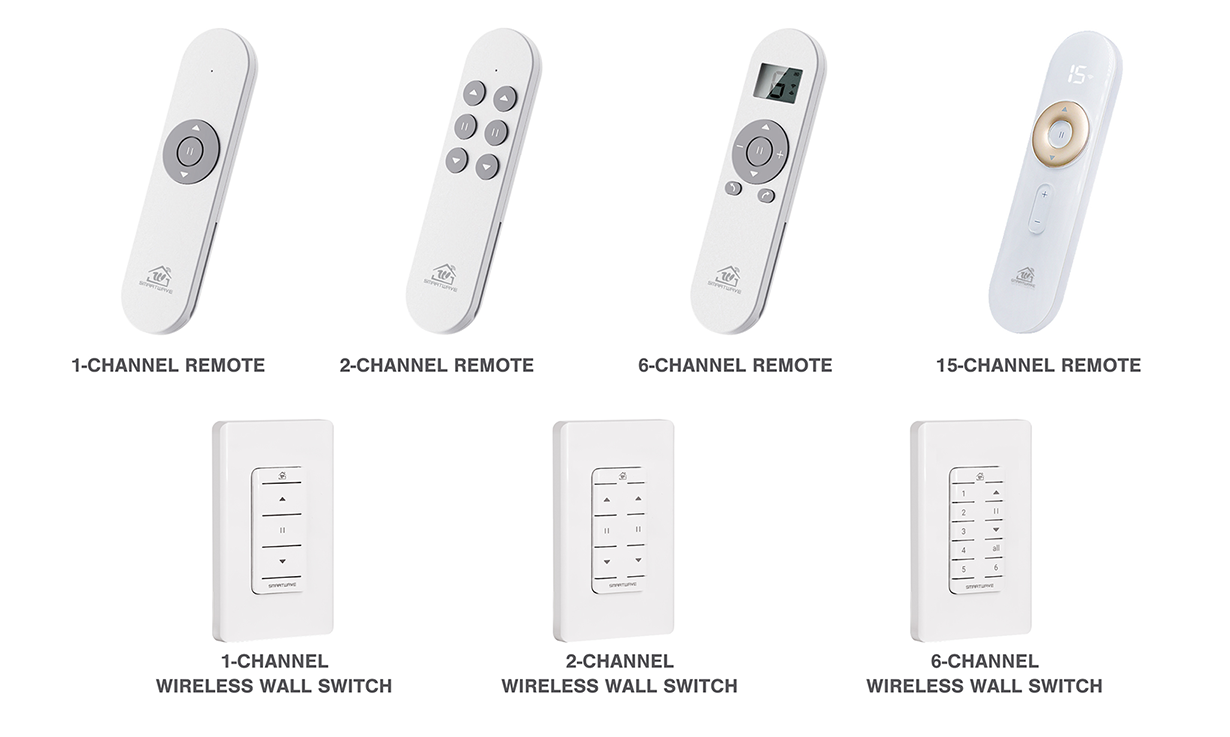

• Please note that if your remote control or wireless wall switch is a 2-channel device,
  Channel 1 corresponds to the programming button labeled “P1.”
  Channel 2 corresponds to the programming button labeled “P2.”

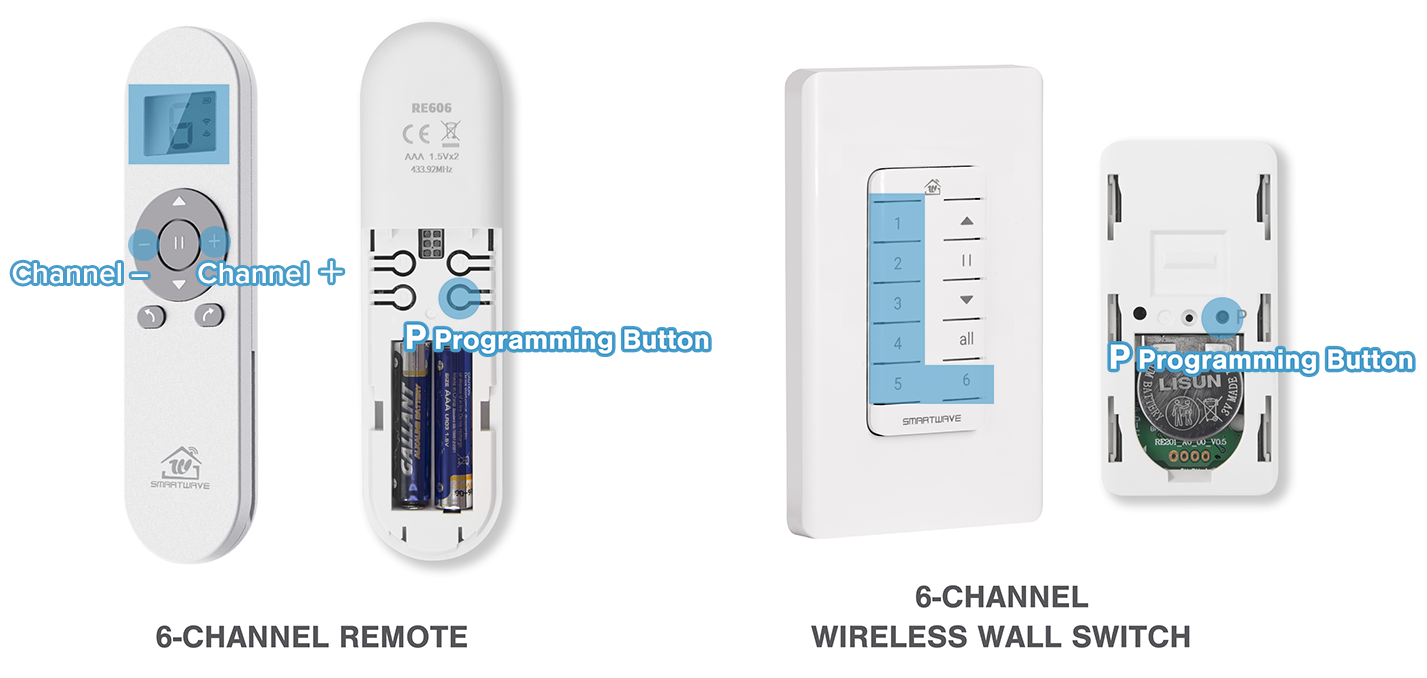

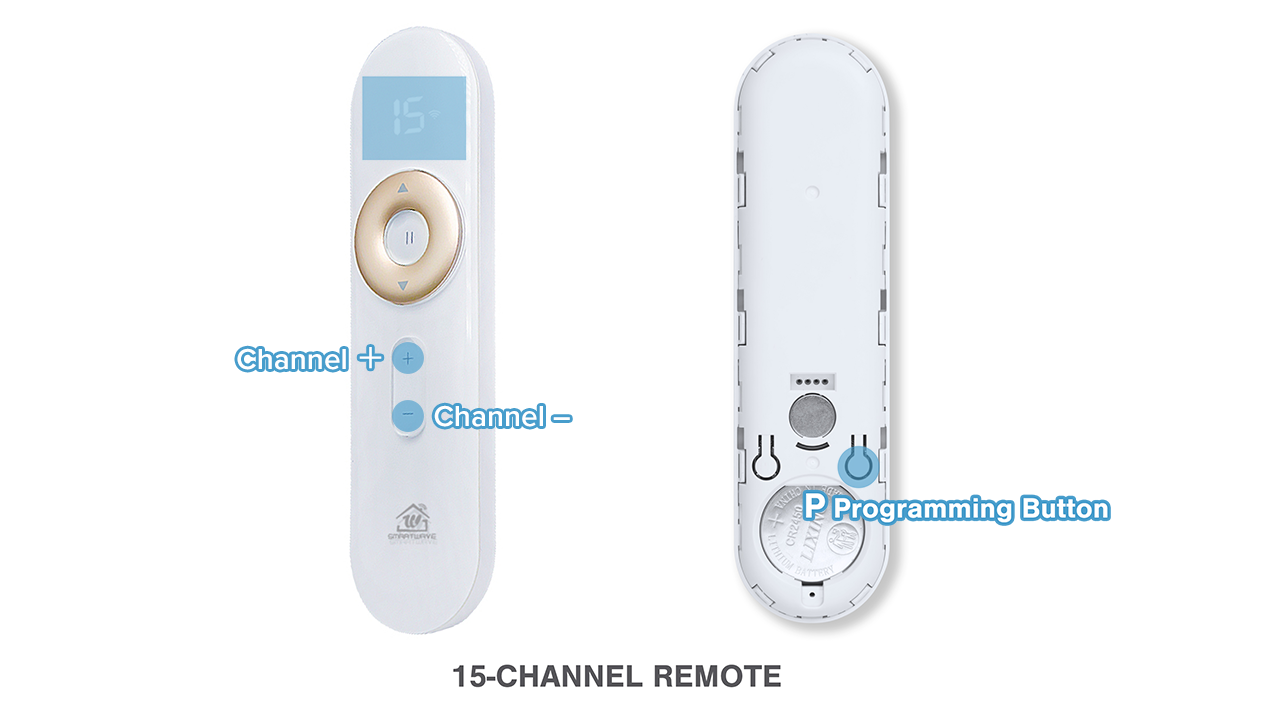

• If it is a 6-channel or 15-channel device, select the desired channel first. The P button will then function as the programming button for the selected channel.

Method 1: Using the Program Button on the Motor

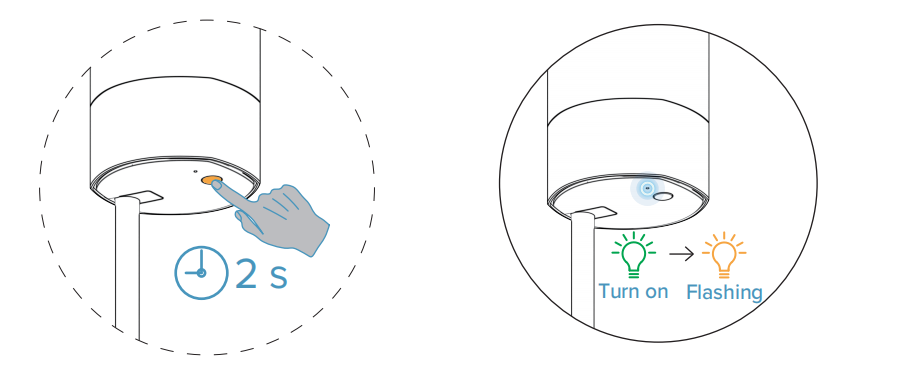

Step 1: PRESS AND HOLD the motor’s Programming button for about 2 seconds.
The indicator light will turn green, then change to orange and begin flashing.

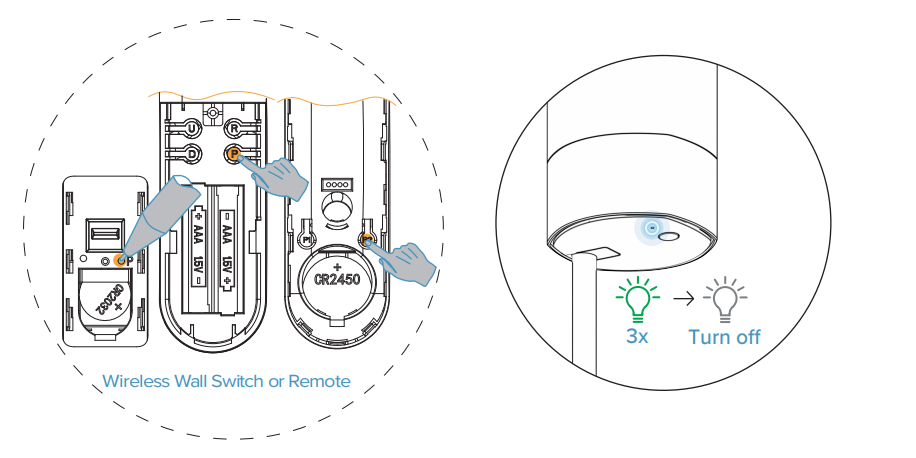

Step 2: Select the remote or channel you want to delete.
BRIEFLY PRESS AND RELEASE the P button on the back of the remote. Note: Do not hold the button.
(For wireless wall switches, use a paperclip or similar item.)
The indicator light will flash green three times and then turn off, confirming successful deletion.

Method 2: Using the P Button on the Remote to Be Deleted

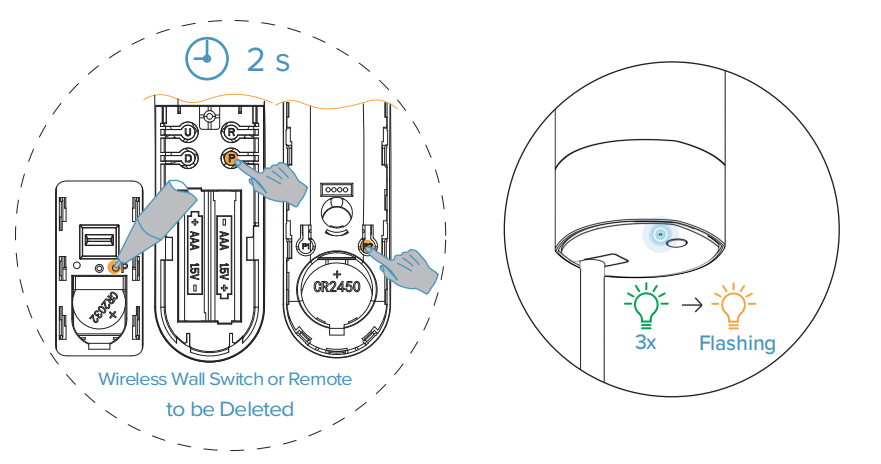

Step 1: Select the remote or channel you want to delete.
PRESS AND HOLD the P button on the back of the remote for about 2 seconds.
(For wireless wall switches, use a paperclip or similar item.)
The indicator light will flash green three times, then switch to orange and continue flashing.

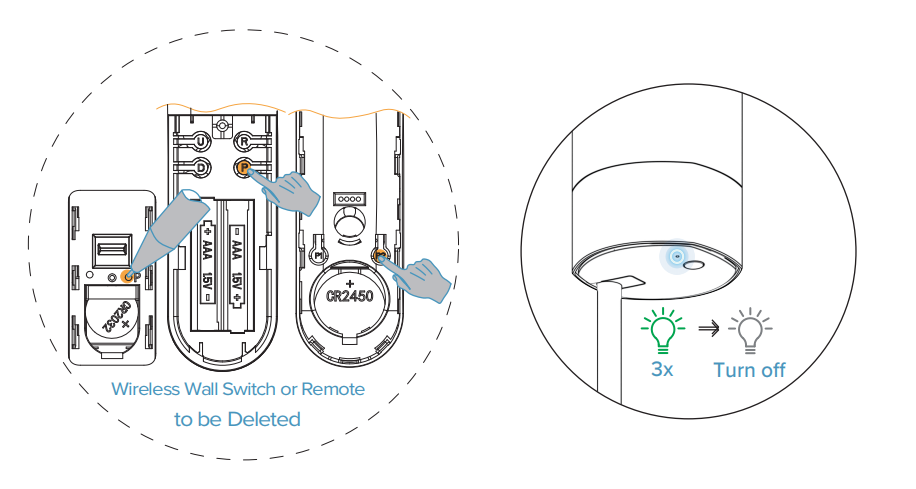

Step 2: Then, on the same remote, BRIEFLY PRESS AND RELEASE the P button again. Note: Do not hold the button.
The indicator light will flash green three times and then turn off, confirming successful deletion.
