This guide covers the following shade types: Drapery.
1. Resetting the shade to factory settings will erase all existing configurations.This action should only be performed when replacing the motor or when a factory reset is absolutely necessary for operational reasons. Please proceed with caution.
2. If the shade is connected to a smart app and the motor needs to be reset, do not use the app to control the shade until the motor has fully returned to normal operating mode. Doing so may cause damage to the shade.
Watch the video below to learn How to Reset and Set Up the Drapery for the First Time.

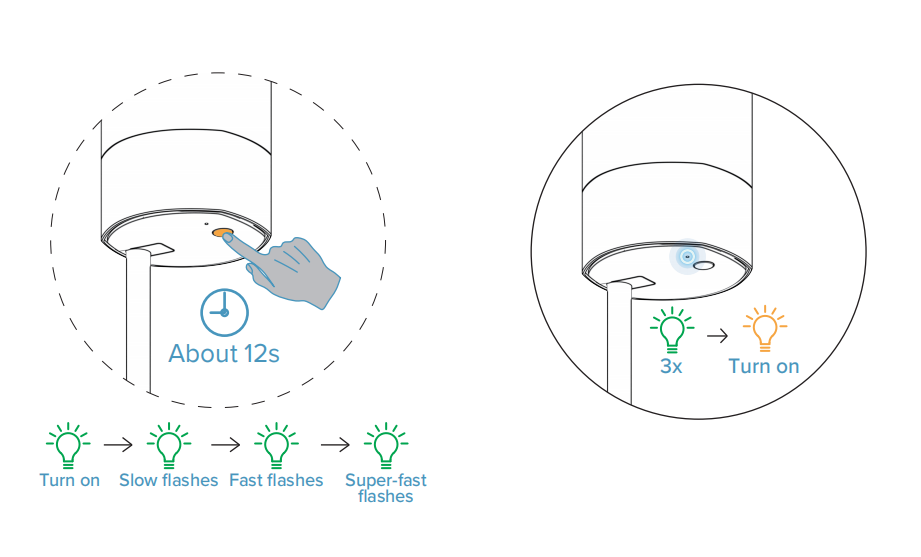

Step 1: Reset your drapery
PRESS AND HOLD the motor’s Programming button for about 12 seconds.
During this time, the indicator light will first turn green, then change from slow flashing to fast flashing, and finally to super-fast flashing.
After releasing the button, the light will flash green three times and then remain solid orange, indicating that the drapery has been successfully reset.
Step 2: Pair the Remote or Channel
-

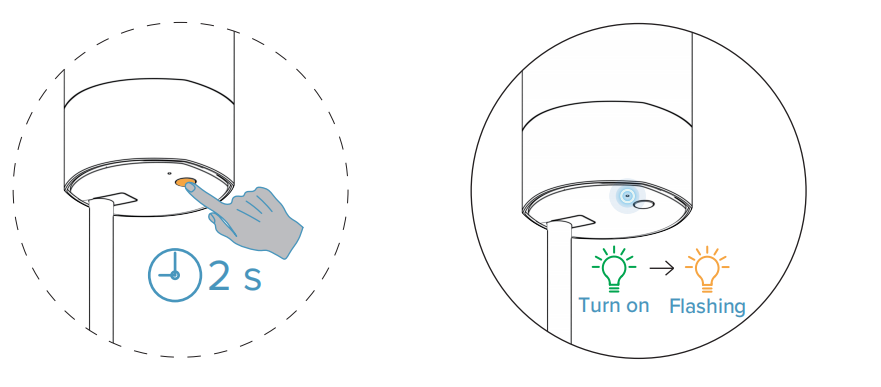

PRESS AND HOLD the motor’s Programming button for about 2 seconds.
The indicator light will first turn green, then switch to orange and begin flashing. -
Select the remote or channel you want to add. （For example, if you’re using a 15-channel remote and want to pair the shade to channel 6, switch the remote to channel 6.）

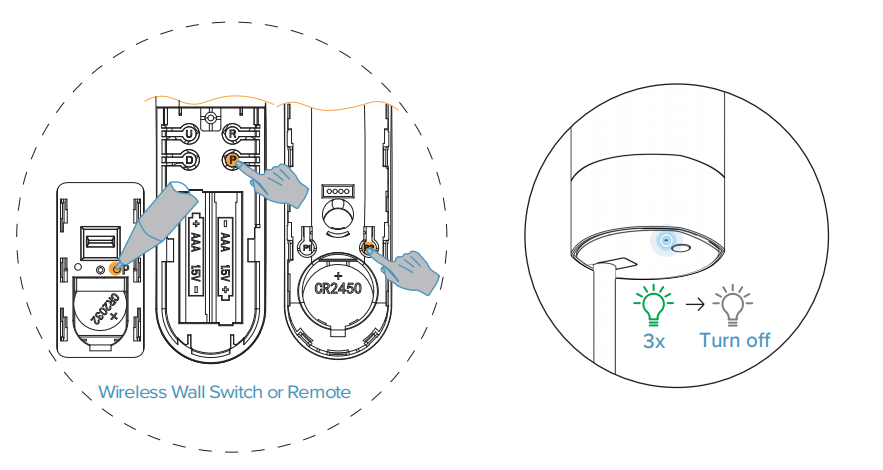

BRIEFLY PRESS AND RELEASE the P button on the back of the remote. Note: Do not hold the button.
(For wireless wall switches, use a paperclip or similar item.)
The indicator light will flash green three times and then turn off, confirming successful pairing.
1. During the Initial Setup, the motor can be paired with only one remote or channel.
2. If you want to pair additional remotes or channels, please complete all Initial Setup steps first, and then follow “Pairing a New Remote or Channel with the Drapery” to add them.
Step 3: Set the Limit

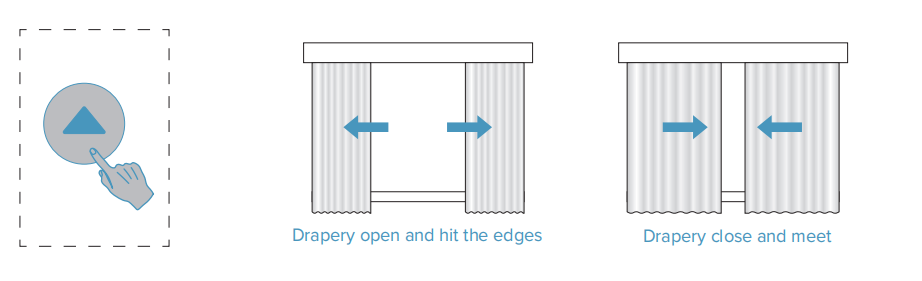

Method 1: Set the limit using the remote
On the remote, BRIEFLY PRESS UP and release.
The drapery will automatically open to the edge, then close and meet, completing the limit setting.
At this point, the Initial Setup is complete and the drapery has returned to normal operation.

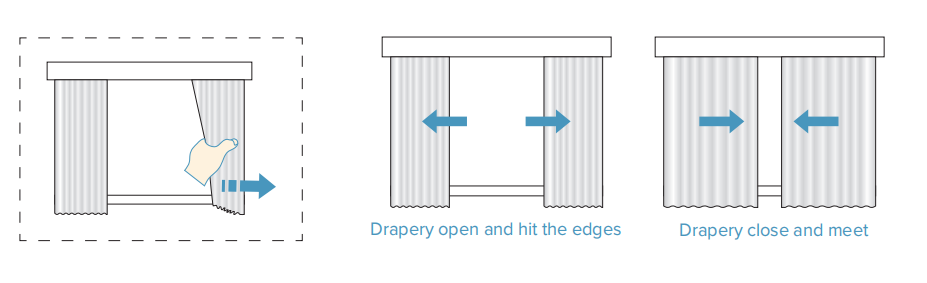

Method 2: Set the limit by pulling the fabric
Use your hand to drag the fabric for a short distance.
The drapery will automatically open to the edge, then close and meet, completing the limit setting.
At this point, the Initial Setup is complete and the drapery has returned to normal operation.
